Wood Ovo L/O 1g Isolated Satellite WH

SKU: WOLSATIW Category:
Wood Ovo L/O 1g Isolated Satellite WH
Wood Ovo L/O 1g Isolated Satellite WH - Image 2
Wood Ovo L/O 1g Isolated Satellite WH - Image 3
Wood Ovo L/O 1g Isolated Satellite WH - Image 4
SKU: WOLSATIW Category:

Type

1 gang Isolated Satellite

Plate Finish

Light Oak

Insert Finish

White

Description

Woods Ovolo Light Oak 1 gang Isolated Satellite White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-032-022
Insert-Type

1 gang Isolated Satellite
Insert-Colour

White
Uf-ItmLabelTechInsert

SATI
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Light Oak 1 gang Isolated Satellite White
PlateFinish

Woods Ovolo Light Oak
EAN13-Barcode

5017504310677
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
EuroFix-Additional-Notes

Isolated F-type outlet for Satellite or Cable TV installations where a DC signal back to the LNB unit on the satellite dish NOT required.
Commodity-Code

85367000
Wiring-Image

Item-Image

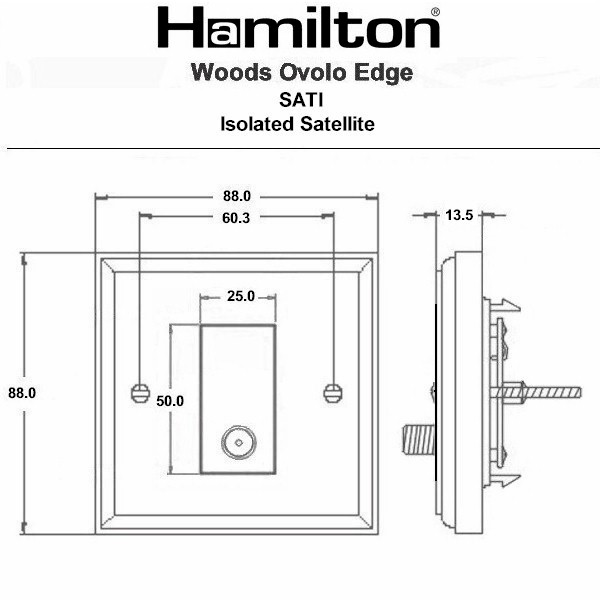

Dimension-Image

Luckins-TSI

391601545
Tech-Sheet-Page-Footer

WOLSATIW – Woods Ovolo Light Oak 1 gang Isolated Satellite White
product-code

S WD OV-LO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533219021
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

32
InsertSortOrder

022
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Light Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Satellite Isolated
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
WoodEdge

Ovolo
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

Wood Ovo L/O 1g Isolated Satellite WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Light Oak
Subheader2

Woods Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
