Wood Ovo D/O 1g Telephone Master WH

SKU: WODTCMW Category:
Wood Ovo D/O 1g Telephone Master WH
Wood Ovo D/O 1g Telephone Master WH - Image 2
Wood Ovo D/O 1g Telephone Master WH - Image 3
Wood Ovo D/O 1g Telephone Master WH - Image 4
SKU: WODTCMW Category:

Type

1 gang Telephone Master

Plate Finish

Dark Oak

Insert Finish

White

Description

Woods Ovolo Dark Oak 1 gang Telephone Master White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-031-003
Insert-Type

1 gang Telephone Master
Insert-Colour

White
Uf-ItmLabelTechInsert

TCM
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Dark Oak 1 gang Telephone Master White
PlateFinish

Woods Ovolo Dark Oak
EAN13-Barcode

5017504330644
Dimensions(Nominal)

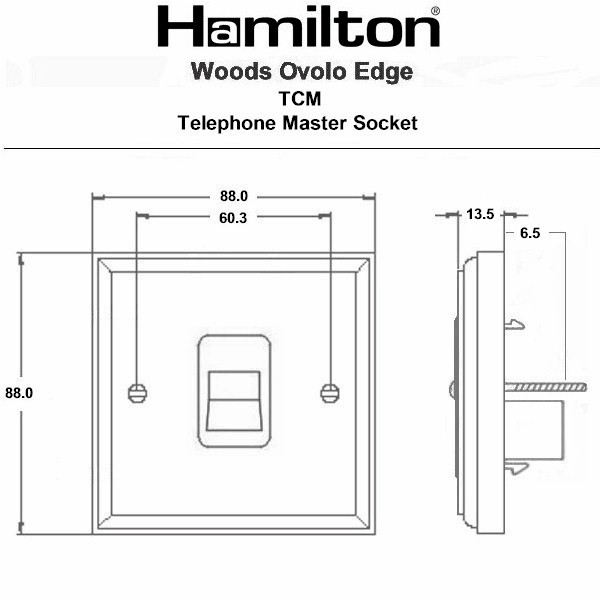

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391599893
Tech-Sheet-Page-Footer

WODTCMW – Woods Ovolo Dark Oak 1 gang Telephone Master White
product-code

S WD OV-DO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533217379
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

31
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Master
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
WoodEdge

Ovolo
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Wood Ovo D/O 1g Telephone Master WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Dark Oak
Subheader2

Woods Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
