Wood Cha A/M Non-Isolated TV+FM+2XSAT WH

SKU: WCADENTW Category:
Wood Cha A/M Non-Isolated TV+FM+2XSAT WH
Wood Cha A/M Non-Isolated TV+FM+2XSAT WH - Image 2
Wood Cha A/M Non-Isolated TV+FM+2XSAT WH - Image 3
Wood Cha A/M Non-Isolated TV+FM+2XSAT WH - Image 4
SKU: WCADENTW Category:

Type

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible)

Plate Finish

Antique Mahogany

Insert Finish

White

Description

Woods Chamfered Antique Mahogany Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-031-002
Insert-Type

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible)
Insert-Colour

White
Uf-ItmLabelTechInsert

DENT
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Antique Mahogany Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) White
PlateFinish

Woods Chamfered Antique Mahogany
EAN13-Barcode

5017504930080
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 50581:2012, BS EN 60728-4:2008, BS EN 50083-2: 2012/A1:2015
EuroFix-Additional-Notes

Quadplexer for use with combined TV FM and Satellite Signals (DAB compatible)
Frequencies-1

TV=5-68 MHz 125-860 MHz
Frequencies-2

FM=88-108 MHz
Frequencies-3

SAT DC=950-2200 MHz
Commodity-Code

85367000

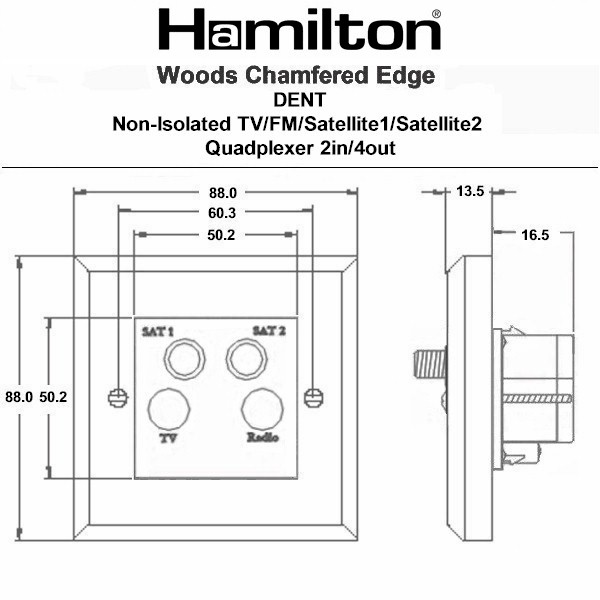

Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391588121
Tech-Sheet-Page-Footer

WCADENTW – Woods Chamfered Antique Mahogany Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) White
product-code

S WD CH-AM
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533205611
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

31
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Mahogany
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV+FM+SAT1+SAT2
WEB-NumberofGangs

4
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
WoodEdge

Chamfered
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

Wood Cha A/M Non-Isolated TV+FM+2XSAT WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Antique Mahogany
Subheader2

Woods Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
