Wood Cha A/M Non-Iso DAB TV+FM+SAT BL
Wood Cha A/M Non-Iso DAB TV+FM+SAT BL - Image 2
Wood Cha A/M Non-Iso DAB TV+FM+SAT BL - Image 3
SKU: WCADTRIDB Category:

Type

Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible)

Plate Finish

Antique Mahogany

Insert Finish

Black

Description

Woods Chamfered Antique Mahogany Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-031-014
Insert-Type

Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible)
Insert-Colour

Black
Uf-ItmLabelTechInsert

DTRID
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Antique Mahogany Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black
PlateFinish

Woods Chamfered Antique Mahogany
EAN13-Barcode

5017504931544
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 50083-2:2012/A1; 2015. BS EN 61169-2:2007. BS EN 61169-24:2009
EuroFix-Additional-Notes

Triplexer for use with combined TV FM and Satellite Signal (DAB compatible)
Frequencies-1

TV=5-68 MHz 125-860 MHz
Frequencies-2

FM=88-108 MHz
Frequencies-3

SAT DC=950-2200 MHz
Commodity-Code

85367000
Wiring-Image

Item-Image

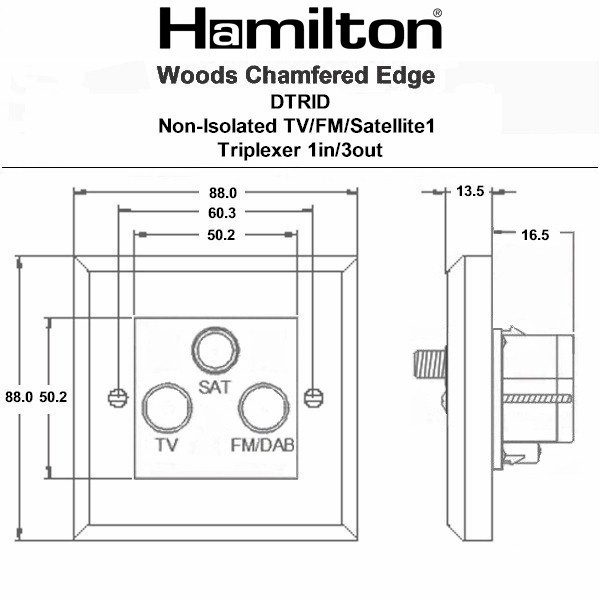

Dimension-Image

Luckins-TSI

391588244
Tech-Sheet-Page-Footer

WCADTRIDB – Woods Chamfered Antique Mahogany Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black
product-code

S WD CH-AM
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533205734
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

31
InsertSortOrder

014
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Mahogany
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV+FM+SAT
WEB-NumberofGangs

3
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
WoodEdge

Chamfered
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

Wood Cha A/M Non-Iso DAB TV+FM+SAT BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Antique Mahogany
Subheader2

Woods Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
