Wood Cha A/M Isol TVFM Diplex 1in/2o BL

SKU: WCATVFMB Category:
Wood Cha A/M Isol TVFM Diplex 1in/2o BL
Wood Cha A/M Isol TVFM Diplex 1in/2o BL - Image 2
Wood Cha A/M Isol TVFM Diplex 1in/2o BL - Image 3
Wood Cha A/M Isol TVFM Diplex 1in/2o BL - Image 4
SKU: WCATVFMB Category:

Type

Isolated TV/FM Diplexer 1in/2out

Plate Finish

Antique Mahogany

Insert Finish

Black

Description

Woods Chamfered Antique Mahogany Isolated TV/FM Diplexer 1in/2out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-032-012
Insert-Type

Isolated TV/FM Diplexer 1in/2out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TVFM
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Antique Mahogany Isolated TV/FM Diplexer 1in/2out Black
PlateFinish

Woods Chamfered Antique Mahogany
EAN13-Barcode

5017504931636
Dimensions(Nominal)

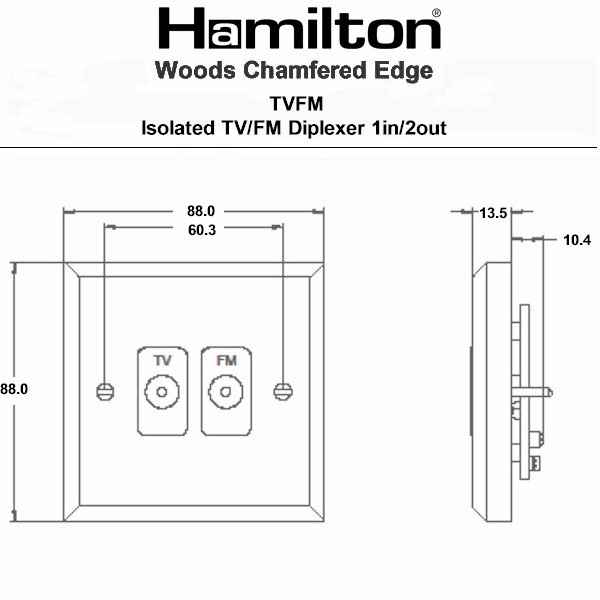

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391589405
Tech-Sheet-Page-Footer

WCATVFMB – Woods Chamfered Antique Mahogany Isolated TV/FM Diplexer 1in/2out Black
product-code

S WD CH-AM
family-code

S WOODS
last-inv

06/04/2014
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533206885
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

32
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Mahogany
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV/FM Isolated
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
WoodEdge

Chamfered
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Wood Cha A/M Isol TVFM Diplex 1in/2o BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Antique Mahogany
Subheader2

Woods Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
