Wood Cha A/M 2g RJ45 CAT5E Unshield WH

SKU: WCA2J45W Category:
Wood Cha A/M 2g RJ45 CAT5E Unshield WH
Wood Cha A/M 2g RJ45 CAT5E Unshield WH - Image 2
Wood Cha A/M 2g RJ45 CAT5E Unshield WH - Image 3
Wood Cha A/M 2g RJ45 CAT5E Unshield WH - Image 4
SKU: WCA2J45W Category:

Type

2 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Antique Mahogany

Insert Finish

White

Description

Woods Chamfered Antique Mahogany 2 gang RJ45 CAT 5E Outlet – Unshielded White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-033-002
Insert-Type

2 gang RJ45 CAT 5E Outlet – Unshielded
Insert-Colour

White
Uf-ItmLabelTechInsert

2J45
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Antique Mahogany 2 gang RJ45 CAT 5E Outlet – Unshielded White
PlateFinish

Woods Chamfered Antique Mahogany
EAN13-Barcode

5017504930585
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

Item-Image

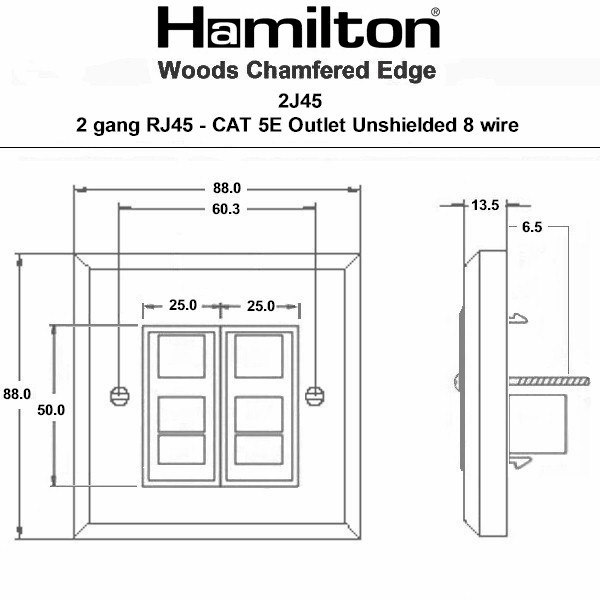

Dimension-Image

Luckins-TSI

391587591
Tech-Sheet-Page-Footer

WCA2J45W – Woods Chamfered Antique Mahogany 2 gang RJ45 CAT 5E Outlet – Unshielded White
product-code

S WD CH-AM
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533205093
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

033
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Mahogany
Uf-HAMFrameFinish

n/a
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

2
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

17/02/26
WoodEdge

Chamfered
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

Wood Cha A/M 2g RJ45 CAT5E Unshield WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Antique Mahogany
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
