Wood Ovo D/O 10A Triple Pole Rkr WH/WH

SKU: WODTPWHW Category:
Wood Ovo D/O 10A Triple Pole Rkr WH/WH
Wood Ovo D/O 10A Triple Pole Rkr WH/WH - Image 2
Wood Ovo D/O 10A Triple Pole Rkr WH/WH - Image 3
Wood Ovo D/O 10A Triple Pole Rkr WH/WH - Image 4
SKU: WODTPWHW Category:

Type

1 gang 10A Triple Pole Rocker

Plate Finish

Dark Oak

Insert Finish

White/White

Description

Woods Ovolo Dark Oak 1 gang 10A Triple Pole Rocker White/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-001-051
Insert-Type

1 gang 10A Triple Pole Rocker
Insert-Colour

White/White
Uf-ItmLabelTechInsert

TP
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Dark Oak 1 gang 10A Triple Pole Rocker White/White
PlateFinish

Woods Ovolo Dark Oak
EAN13-Barcode

5017504330507

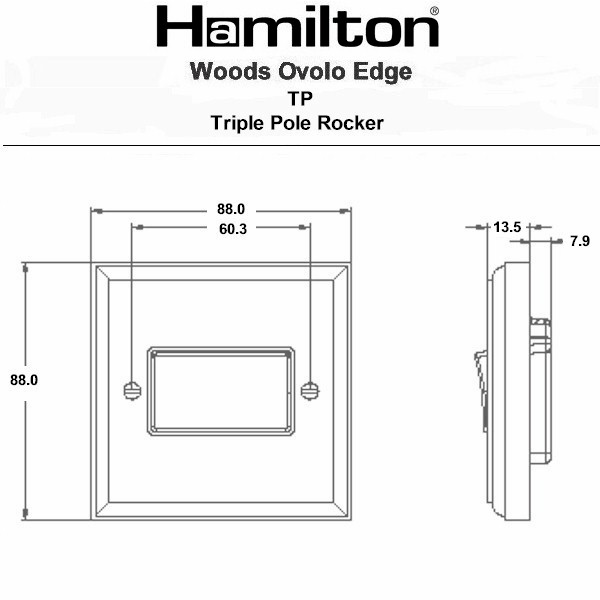

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Triple
Current-Rating

10A
Maximum-Load

10 Amp resistive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3 x2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

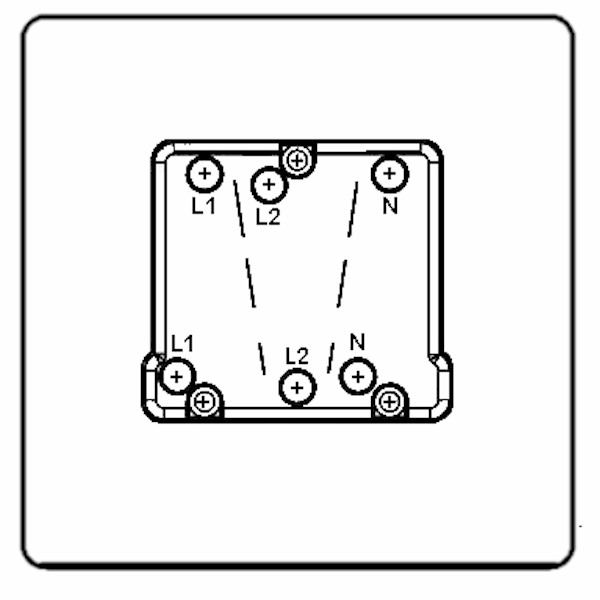

Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391599932
Tech-Sheet-Page-Footer

WODTPWH-W – Woods Ovolo Dark Oak 1 gang 10A Triple Pole Rocker White/White
product-code

S WD OV-DO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533217418
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

1
InsertSortOrder

051
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Triple Pole
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

White
Last-Updated-At-Hamilton

02/11/2026
WoodEdge

Ovolo
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Dark Oak
Subheader2

Woods Rocker Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Ovo D/O 10A Triple Pole Rkr WH/WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
