Description
Woods Chamfered Dark Oak 1 gang 10A Triple Pole Rocker Black/Black
SKU: WCDTPBLB
Category: Woods Rocker Switches
Type
1 gang 10A Triple Pole RockerPlate Finish
Dark OakInsert Finish
Black/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Woods |
| Page-Sort-Order | 030-001-051 |
| Insert-Type | 1 gang 10A Triple Pole Rocker |
| Insert-Colour | Black/Black |
| Uf-ItmLabelTechInsert | TP |
| Uf-HAM-Plate-Range | Woods Chamfered |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Woods |
| Item-Long-Description | Woods Chamfered Dark Oak 1 gang 10A Triple Pole Rocker Black/Black |
| PlateFinish | Woods Chamfered Dark Oak |
| EAN13-Barcode | 5017504921507 |

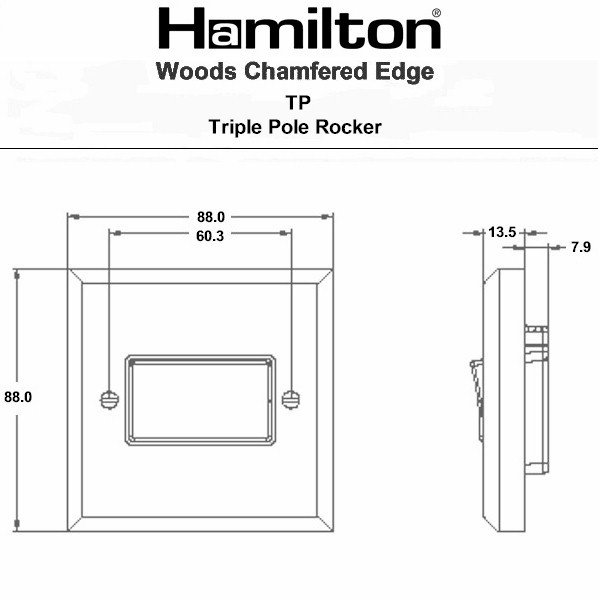

| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm |
| Switched-Poles | Triple |
| Current-Rating | 10A |
| Maximum-Load | 10 Amp resistive |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 1×2.5mm² |
| Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3 x2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |
| Wiring-Image | WDTP.jpg |
| Item-Image | WCDTPBL-B.jpg |
| Dimension-Image | TD-WCTP.jpg |
| Luckins-TSI | 391591480 |
| Tech-Sheet-Page-Footer | WCDTPBL-B – Woods Chamfered Dark Oak 1 gang 10A Triple Pole Rocker Black/Black |
| product-code | S WD CH-DO |
| family-code | S WOODS |
| last-inv | 10/05/17 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533208964 |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 24 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 030 |
| HAM-SortOrder | 001 |
| InsertSortOrder | 051 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Dark Oak |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Triple Pole |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 11/02/26 |
| WoodEdge | Chamfered |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 25mm |
| Plate-Finish | Dark Oak |
| Subheader2 | Woods Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/efun/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Wood Cha D/O 10A Triple Pole Rkr BL/BL |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 13.5mm |
Download datasheet
