Wood Cha A/M 1g 10AX Inter Rkr PB/BL

SKU: WCAR31PBB Category:
Wood Cha A/M 1g 10AX Inter Rkr PB/BL
Wood Cha A/M 1g 10AX Inter Rkr PB/BL - Image 2
Wood Cha A/M 1g 10AX Inter Rkr PB/BL - Image 3
SKU: WCAR31PBB Category:

Type

1 gang 10AX Intermediate Rocker

Plate Finish

Antique Mahogany

Insert Finish

Polished Brass/Black

Description

Woods Chamfered Antique Mahogany 1 gang 10AX Intermediate Rocker Polished Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-001-021
Insert-Type

1 gang 10AX Intermediate Rocker
Insert-Colour

Polished Brass/Black
Uf-ItmLabelTechInsert

R31
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Antique Mahogany 1 gang 10AX Intermediate Rocker Polished Brass/Black
PlateFinish

Woods Chamfered Antique Mahogany
EAN13-Barcode

5017504932312

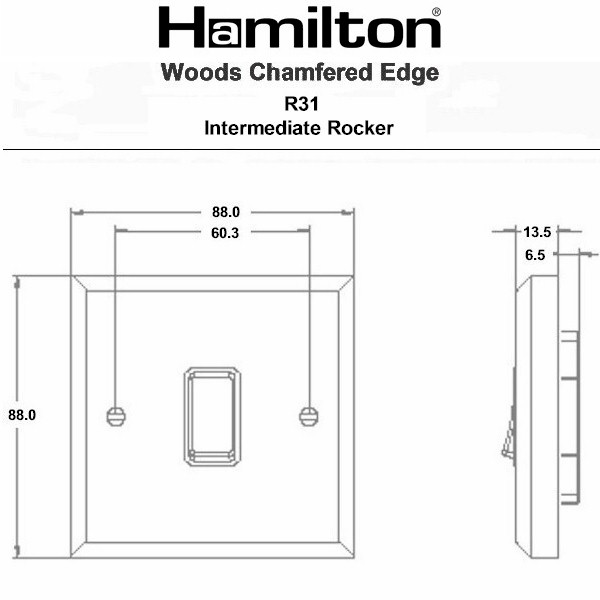

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391588794
Tech-Sheet-Page-Footer

WCAR31PB-B – Woods Chamfered Antique Mahogany 1 gang 10AX Intermediate Rocker Polished Brass/Black
product-code

S WD CH-AM
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533206270
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

001
InsertSortOrder

021
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Mahogany
Uf-HAMFrameFinish

n/a
WEB-InsertType

Intermediate
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

Black
Last-Updated-At-Hamilton

05/12/25
WoodEdge

Chamfered
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Antique Mahogany
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Cha A/M 1g 10AX Inter Rkr PB/BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm
