Wood Ovo M/O Shaver Dual Volt Socket BL

Wood Ovo M/O Shaver Dual Volt Socket BL
Wood Ovo M/O Shaver Dual Volt Socket BL - Image 2
Wood Ovo M/O Shaver Dual Volt Socket BL - Image 3
Wood Ovo M/O Shaver Dual Volt Socket BL - Image 4

Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)

Plate Finish

Medium Oak

Insert Finish

Black

Description

Woods Ovolo Medium Oak Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-021-011
Insert-Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)
Insert-Colour

Black
Uf-ItmLabelTechInsert

SHS
Uf-HAM-Plate-Range

Woods Ovolo Vertical
Uf-HAMPlate-Generic-Size

Double
Range-Name

Woods
Item-Long-Description

Woods Ovolo Medium Oak Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
PlateFinish

Woods Ovolo Vertical Medium Oak
EAN13-Barcode

5017504321031

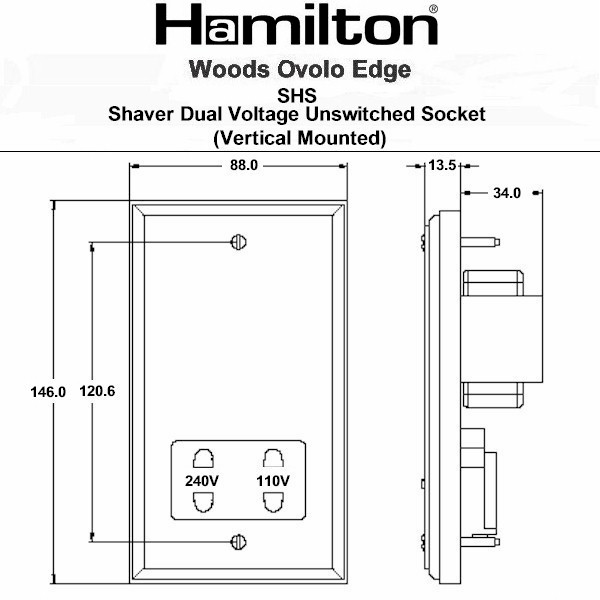

Dimensions(Nominal)

Double: Height = 146.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

None
Current-Rating

20VA
Maximum-Load

200/250V input; 115/230V 20VA output
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

9x1mm²
Earth-Terminal-Capacity-2

6×1.5mm²
Earth-Terminal-Capacity-3

4×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 61558-2-5 + BS 4573
Additional-Notes

Must be mounted vertically. Shuttered :Yes. Box Depth 47mm
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391603679
Tech-Sheet-Page-Footer

WOMSHSB – Woods Ovolo Medium Oak Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
product-code

S WD OV-MO
family-code

S WOODS
last-inv

03/11/2020
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533221158
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

21
InsertSortOrder

011
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Medium Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Shaver Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

12/05/2025
WoodEdge

Ovolo
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

47mm
Plate-Finish

Medium Oak
Subheader2

Woods Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/bzky/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Ovo M/O Shaver Dual Volt Socket BL
Height

146.0mm
Width

88.0mm
Depth

13.5mm
