Wood Ovo D/O 2g 13A DP Swt Skt BC/WH

SKU: WODSS2BCW Category:
Wood Ovo D/O 2g 13A DP Swt Skt BC/WH
Wood Ovo D/O 2g 13A DP Swt Skt BC/WH - Image 2
Wood Ovo D/O 2g 13A DP Swt Skt BC/WH - Image 3
Wood Ovo D/O 2g 13A DP Swt Skt BC/WH - Image 4
SKU: WODSS2BCW Category:

Type

2 gang 13A Double Pole Switched Socket

Plate Finish

Dark Oak

Insert Finish

Bright Chrome/White

Description

Woods Ovolo Dark Oak 2 gang 13A Double Pole Switched Socket Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-021-002
Insert-Type

2 gang 13A Double Pole Switched Socket
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

SS2
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Double
Range-Name

Woods
Item-Long-Description

Woods Ovolo Dark Oak 2 gang 13A Double Pole Switched Socket Bright Chrome/White
PlateFinish

Woods Ovolo Dark Oak
EAN13-Barcode

5017504335021
Dimensions(Nominal)

Double: Height = 88.0mm Width = 146.0mm Depth = 13.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Dual Earth: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

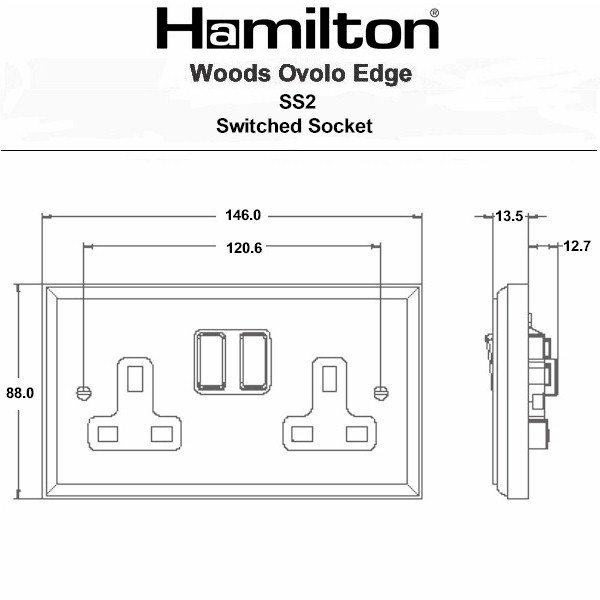

Dimension-Image

Luckins-TSI

391599660
Tech-Sheet-Page-Footer

WODSS2BC-W – Woods Ovolo Dark Oak 2 gang 13A Double Pole Switched Socket Bright Chrome/White
product-code

S WD OV-DO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533217146
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

021
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

2
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

05/12/25
WoodEdge

Ovolo
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Dark Oak
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Ovo D/O 2g 13A DP Swt Skt BC/WH
Height

88.0mm
Width

146.0mm
Depth

13.5mm
