Wood Ovo D/O 1g 13A DP Swt Skt SC/BL

SKU: WODSS1SCB Category:
Wood Ovo D/O 1g 13A DP Swt Skt SC/BL
Wood Ovo D/O 1g 13A DP Swt Skt SC/BL - Image 2
Wood Ovo D/O 1g 13A DP Swt Skt SC/BL - Image 3
Wood Ovo D/O 1g 13A DP Swt Skt SC/BL - Image 4
SKU: WODSS1SCB Category:

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Dark Oak

Insert Finish

Satin Chrome/Black

Description

Woods Ovolo Dark Oak 1 gang 13A Double Pole Switched Socket Satin Chrome/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-021-001
Insert-Type

1 gang 13A Double Pole Switched Socket
Insert-Colour

Satin Chrome/Black
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Dark Oak 1 gang 13A Double Pole Switched Socket Satin Chrome/Black
PlateFinish

Woods Ovolo Dark Oak
EAN13-Barcode

5017504336011
Dimensions(Nominal)

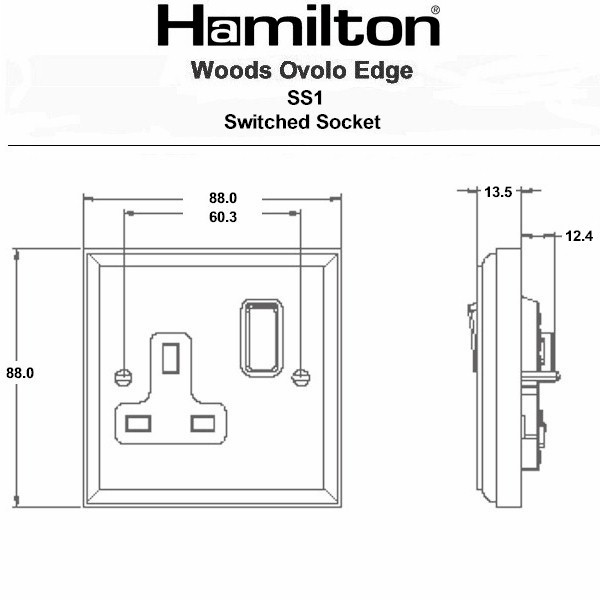

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391599563
Tech-Sheet-Page-Footer

WODSS1SC-B – Woods Ovolo Dark Oak 1 gang 13A Double Pole Switched Socket Satin Chrome/Black
product-code

S WD OV-DO
family-code

S WOODS
last-inv

28/02/17
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533217049
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

021
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Satin Chrome
TrimColour

Black
Last-Updated-At-Hamilton

05/12/25
WoodEdge

Ovolo
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Dark Oak
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Ovo D/O 1g 13A DP Swt Skt SC/BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm
