Wood Cha D/O 1g 5A Unswt Skt BL

SKU: WCDUS5B Category:
Wood Cha D/O 1g 5A Unswt Skt BL
Wood Cha D/O 1g 5A Unswt Skt BL - Image 2
Wood Cha D/O 1g 5A Unswt Skt BL - Image 3
Wood Cha D/O 1g 5A Unswt Skt BL - Image 4
SKU: WCDUS5B Category:

Type

1 gang 5A Unswitched Socket

Plate Finish

Dark Oak

Insert Finish

Black

Description

Woods Chamfered Dark Oak 1 gang 5A Unswitched Socket Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-021-006
Insert-Type

1 gang 5A Unswitched Socket
Insert-Colour

Black
Uf-ItmLabelTechInsert

US5
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Dark Oak 1 gang 5A Unswitched Socket Black
PlateFinish

Woods Chamfered Dark Oak
EAN13-Barcode

5017504921057
Dimensions(Nominal)

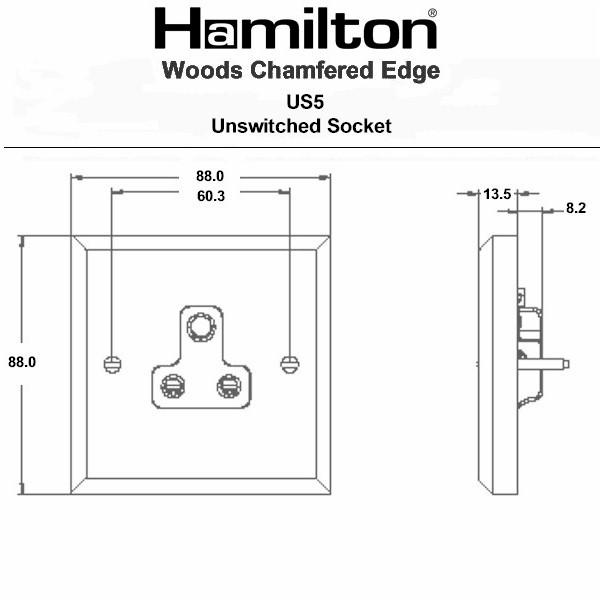

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

None
Current-Rating

5 Amp
Maximum-Load

5 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

2×2.5mm²
Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

2 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 546
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391591587
Tech-Sheet-Page-Footer

WCDUS5B – Woods Chamfered Dark Oak 1 gang 5A Unswitched Socket Black
product-code

S WD CH-DO
family-code

S WOODS
last-inv

15/07/2021
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533209060
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

21
InsertSortOrder

006
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

23/01/2026
WoodEdge

Chamfered
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Dark Oak
Subheader2

Woods Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Cha D/O 1g 5A Unswt Skt BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm
