Wood Cha D/O 10A (6AX) Card Swt SC/BL

SKU: WCDC11SCB Category:
Wood Cha D/O 10A (6AX) Card Swt SC/BL
Wood Cha D/O 10A (6AX) Card Swt SC/BL - Image 2
Wood Cha D/O 10A (6AX) Card Swt SC/BL - Image 3
Wood Cha D/O 10A (6AX) Card Swt SC/BL - Image 4
SKU: WCDC11SCB Category:

Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator

Plate Finish

Dark Oak

Insert Finish

Satin Chrome/Black

Description

Woods Chamfered Dark Oak 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Satin Chrome/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-038-001
Insert-Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator
Insert-Colour

Satin Chrome/Black
Uf-ItmLabelTechInsert

C11
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Dark Oak 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Satin Chrome/Black
PlateFinish

Woods Chamfered Dark Oak
EAN13-Barcode

5017504926915
Dimensions(Nominal)

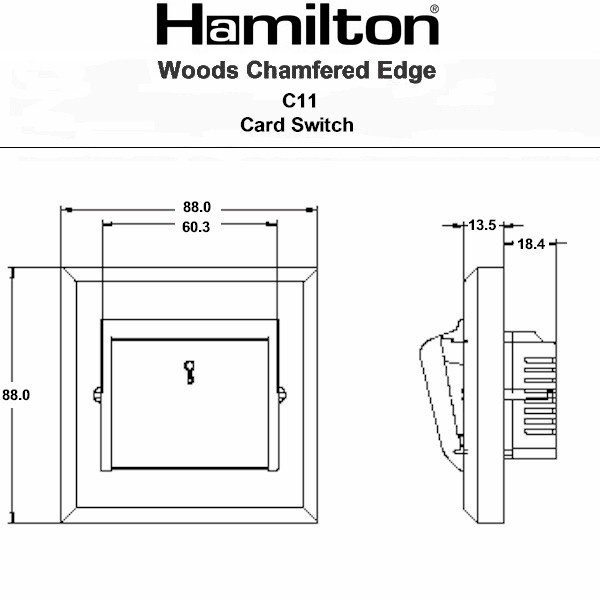

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Single
Current-Rating

10A (6AX)
Maximum-Load

10 Amp (6 Amp inductive)
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x1mm²
Terminal-Capacity-2

2×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-3
Additional-Notes

Adjustable Time Delay 10 seconds – 5 minutes. Suitable for 44mm and 54mm width Hotel Key Cards
Commodity-Code

85363010
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391590180
Tech-Sheet-Page-Footer

WCDC11SC-B – Woods Chamfered Dark Oak 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Satin Chrome/Black
product-code

S WD CH-DO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533207664
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

38
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Key Card
WEB-NumberofGangs

1
MainInsertColour

Satin Chrome
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026
WoodEdge

Chamfered
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Dark Oak
Subheader2

Woods Key Card Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/mmdg/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
Height

88.0mm
Width

88.0mm
Depth

13.5mm
