Wood Ovo D/O 4 Euro Apert 100X50+Grid

SKU: WODEURO4 Category:
Wood Ovo D/O 4 Euro Apert 100X50+Grid
Wood Ovo D/O 4 Euro Apert 100X50+Grid - Image 2
Wood Ovo D/O 4 Euro Apert 100X50+Grid - Image 3
SKU: WODEURO4 Category:

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Dark Oak

Insert Finish

N/A

Description

Woods Ovolo EuroFix Dark Oak Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-046-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Woods Ovolo EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Woods
Item-Long-Description

Woods Ovolo EuroFix Dark Oak Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Woods Ovolo EuroFix Dark Oak
EAN13-Barcode

5017504339180

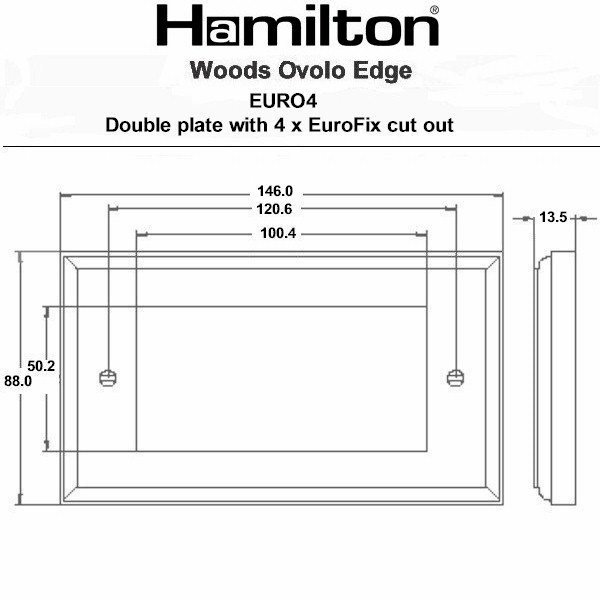

Dimensions(Nominal)

Double: Height = 88.0mm Width = 146.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

44149000
Item-Image

Dimension-Image

Luckins-TSI

391598878
Tech-Sheet-Page-Footer

WODEURO4 – Woods Ovolo EuroFix Dark Oak Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S EW OV-DO
family-code

S WOODS
last-inv

11/04/2022
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533216354
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

46
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

29/01/2026
WoodEdge

Ovolo
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

As Per Inserts
Voltage

Insert Specific
IP-Rating

IPXXB
description

Wood Ovo D/O 4 Euro Apert 100X50+Grid
Height

88.0mm
Width

146.0mm
Depth

13.5mm
Plate-Finish

Dark Oak
Subheader2

Woods Eurofix
