Super Stockists

Wood Ovo L/O 1g 45A DP+N Red Rkr/BL

SKU: WOL45NB Category:
Wood Ovo L/O 1g 45A DP+N Red Rkr/BL
Wood Ovo L/O 1g 45A DP+N Red Rkr/BL - Image 2
Wood Ovo L/O 1g 45A DP+N Red Rkr/BL - Image 3
Wood Ovo L/O 1g 45A DP+N Red Rkr/BL - Image 4
SKU: WOL45NB Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Light Oak

Insert Finish

Red/Black

Description

Woods Ovolo Light Oak 1 gang 45A Double Pole Rocker and Neon Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/Black
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Light Oak 1 gang 45A Double Pole Rocker and Neon Red/Black
PlateFinish

Woods Ovolo Light Oak
EAN13-Barcode

5017504311711
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

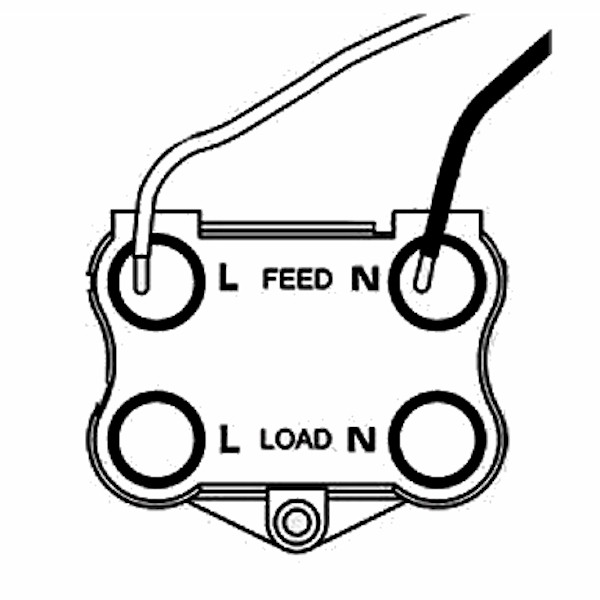

Wiring-Image

Item-Image

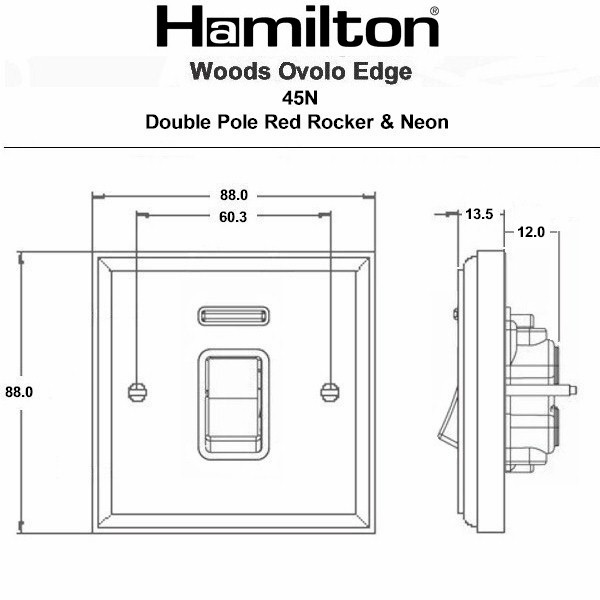

Dimension-Image

Luckins-TSI

391600449
Tech-Sheet-Page-Footer

WOL45NB – Woods Ovolo Light Oak 1 gang 45A Double Pole Rocker and Neon Red/Black
product-code

S WD OV-LO
family-code

S WOODS
last-inv

31/08/2022
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533217926
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Light Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

23/01/2026
WoodEdge

Ovolo
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Light Oak
Subheader2

Woods Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Ovo L/O 1g 45A DP+N Red Rkr/BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm

Download datasheet
