Wood Cha D/O 1g 45A DP+N Red Rkr/WH

SKU: WCD45NW Category:
Wood Cha D/O 1g 45A DP+N Red Rkr/WH
Wood Cha D/O 1g 45A DP+N Red Rkr/WH - Image 2
Wood Cha D/O 1g 45A DP+N Red Rkr/WH - Image 3
Wood Cha D/O 1g 45A DP+N Red Rkr/WH - Image 4
SKU: WCD45NW Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Dark Oak

Insert Finish

Red/White

Description

Woods Chamfered Dark Oak 1 gang 45A Double Pole Rocker and Neon Red/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/White
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Dark Oak 1 gang 45A Double Pole Rocker and Neon Red/White
PlateFinish

Woods Chamfered Dark Oak
EAN13-Barcode

5017504920715

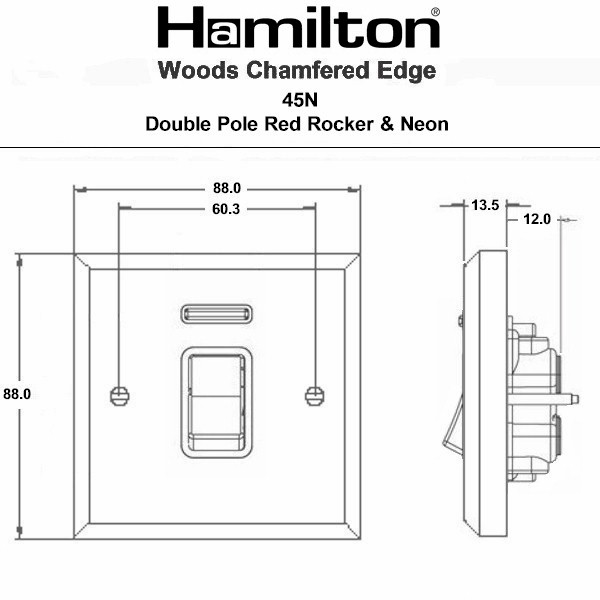

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391589900
Tech-Sheet-Page-Footer

WCD45NW – Woods Chamfered Dark Oak 1 gang 45A Double Pole Rocker and Neon Red/White
product-code

S WD CH-DO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533207389
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

027
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

White
Last-Updated-At-Hamilton

05/12/25
WoodEdge

Chamfered
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Dark Oak
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Cha D/O 1g 45A DP+N Red Rkr/WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
