Wood Ovo M/O 1g LEDITB100 2 way Dim AB

SKU: WOM1XLEDITB100AB Category:
Wood Ovo M/O 1g LEDITB100 2 way Dim AB
Wood Ovo M/O 1g LEDITB100 2 way Dim AB - Image 2
Wood Ovo M/O 1g LEDITB100 2 way Dim AB - Image 3
SKU: WOM1XLEDITB100AB Category:

Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Medium Oak

Insert Finish

Antique Brass

Description

Woods Ovolo Medium Oak 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-012-001
Insert-Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Antique Brass
Uf-ItmLabelTechInsert

1XLEDITB
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Medium Oak 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
PlateFinish

Woods Ovolo Medium Oak
EAN13-Barcode

5017504087449

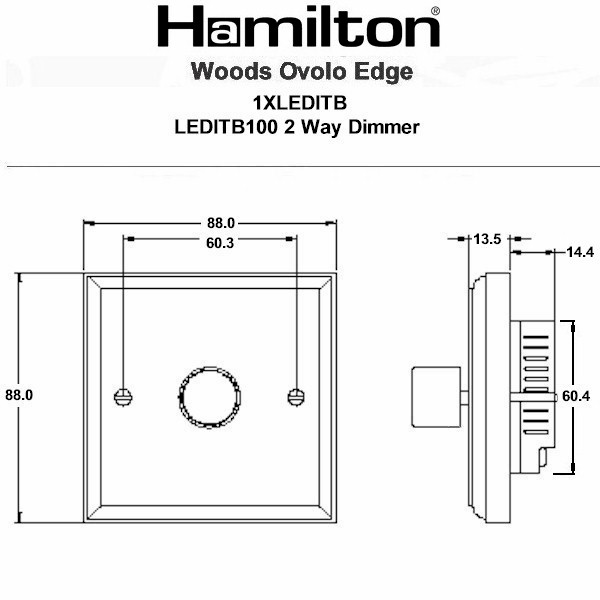

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Single
Current-Rating

0.4A
Maximum-Load

5-100W (10 LED Lamps MAX)
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403385212
Tech-Sheet-Page-Footer

WOM1XLEDITB100AB – Woods Ovolo Medium Oak 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
product-code

S WD OV-MO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533387678
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

012
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Medium Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
WoodEdge

Ovolo
Wiring-Image

last-inv

09/05/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-100W (10 LED Lamps MAX)
Voltage

230V AC
IP-Rating

IP2XD
description

Wood Ovo M/O 1g LEDITB100 2 way Dim AB
Height

88.0mm
Width

88.0mm
Depth

13.5mm
Plate-Finish

Medium Oak
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1

Download datasheet
