Wood Cha A/M 2g LEDITB100 2 way Dim SC

SKU: WCA2XLEDITB100SC Category:
Wood Cha A/M 2g LEDITB100 2 way Dim SC
Wood Cha A/M 2g LEDITB100 2 way Dim SC - Image 2
Wood Cha A/M 2g LEDITB100 2 way Dim SC - Image 3
SKU: WCA2XLEDITB100SC Category:

Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Antique Mahogany

Insert Finish

Satin Chrome

Description

Woods Chamfered Antique Mahogany 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Satin Chrome

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-012-002
Insert-Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Satin Chrome
Uf-ItmLabelTechInsert

2XLEDITB
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Double
Range-Name

Woods
Item-Long-Description

Woods Chamfered Antique Mahogany 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Satin Chrome
PlateFinish

Woods Chamfered Antique Mahogany
EAN13-Barcode

5017504086398
Dimensions(Nominal)

Double: Height = 88.0mm Width = 146.0mm Depth = 13.5mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

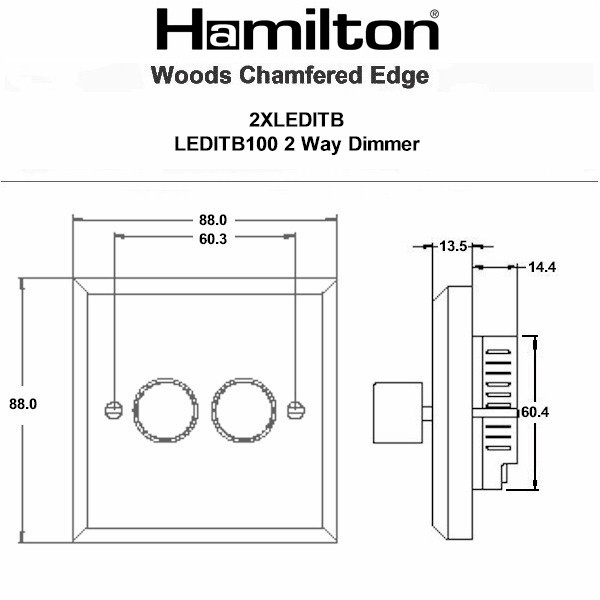

Dimension-Image

Luckins-TSI

403383492
Tech-Sheet-Page-Footer

WCA2XLEDITB100SC – Woods Chamfered Antique Mahogany 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Satin Chrome
product-code

S WD CH-AM
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533386585
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

030
HAM-SortOrder

012
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Mahogany
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Satin Chrome
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
WoodEdge

Chamfered
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Wood Cha A/M 2g LEDITB100 2 way Dim SC
Height

88.0mm
Width

146.0mm
Depth

13.5mm
Plate-Finish

Antique Mahogany
Subheader2

Woods Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
