Wood Ovo D/O 1g 13A Fuse Only PB/WH

SKU: WODFOPBW Category:
Wood Ovo D/O 1g 13A Fuse Only PB/WH
Wood Ovo D/O 1g 13A Fuse Only PB/WH - Image 2
Wood Ovo D/O 1g 13A Fuse Only PB/WH - Image 3
SKU: WODFOPBW Category:

Type

1 gang 13A Fuse Only

Plate Finish

Dark Oak

Insert Finish

Polished Brass/White

Description

Woods Ovolo Dark Oak 1 gang 13A Fuse Only Polished Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-026-011
Insert-Type

1 gang 13A Fuse Only
Insert-Colour

Polished Brass/White
Uf-ItmLabelTechInsert

FO
Uf-HAM-Plate-Range

Woods Ovolo
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Ovolo Dark Oak 1 gang 13A Fuse Only Polished Brass/White
PlateFinish

Woods Ovolo Dark Oak
EAN13-Barcode

5017504333959
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3 x2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010

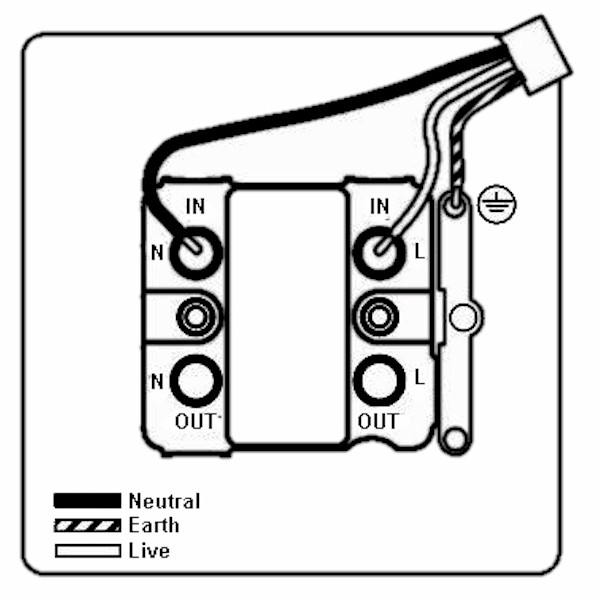

Wiring-Image

Item-Image

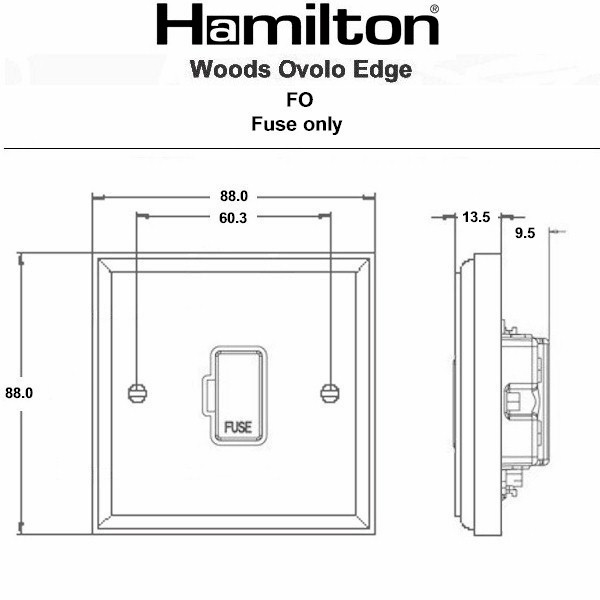

Dimension-Image

Luckins-TSI

391598894
Tech-Sheet-Page-Footer

WODFOPB-W – Woods Ovolo Dark Oak 1 gang 13A Fuse Only Polished Brass/White
product-code

S WD OV-DO
family-code

S WOODS
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533216370
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

26
InsertSortOrder

011
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Dark Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Fuse
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

White
Last-Updated-At-Hamilton

12/05/2025
WoodEdge

Ovolo
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Dark Oak
Subheader2

Woods Connection Units
QR-Instruction

https://online.fliphtml5.com/Hamilton/srhp/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Ovo D/O 1g 13A Fuse Only PB/WH
Height

88.0mm
Width

88.0mm
Depth

13.5mm
