Wood Cha L/O 13A DP Fused Spur+N AB/BL

SKU: WCLSPNABB Category:
Wood Cha L/O 13A DP Fused Spur+N AB/BL
Wood Cha L/O 13A DP Fused Spur+N AB/BL - Image 2
Wood Cha L/O 13A DP Fused Spur+N AB/BL - Image 3
Wood Cha L/O 13A DP Fused Spur+N AB/BL - Image 4
SKU: WCLSPNABB Category:

Type

1 gang 13A Double Pole Fused Spur + Neon

Plate Finish

Light Oak

Insert Finish

Antique Brass/Black

Description

Woods Chamfered Light Oak 1 gang 13A Double Pole Fused Spur and Neon Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-026-002
Insert-Type

1 gang 13A Double Pole Fused Spur + Neon
Insert-Colour

Antique Brass/Black
Uf-ItmLabelTechInsert

SPN
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Single
Range-Name

Woods
Item-Long-Description

Woods Chamfered Light Oak 1 gang 13A Double Pole Fused Spur and Neon Antique Brass/Black
PlateFinish

Woods Chamfered Light Oak
EAN13-Barcode

5017504908928
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010
Wiring-Image

Item-Image

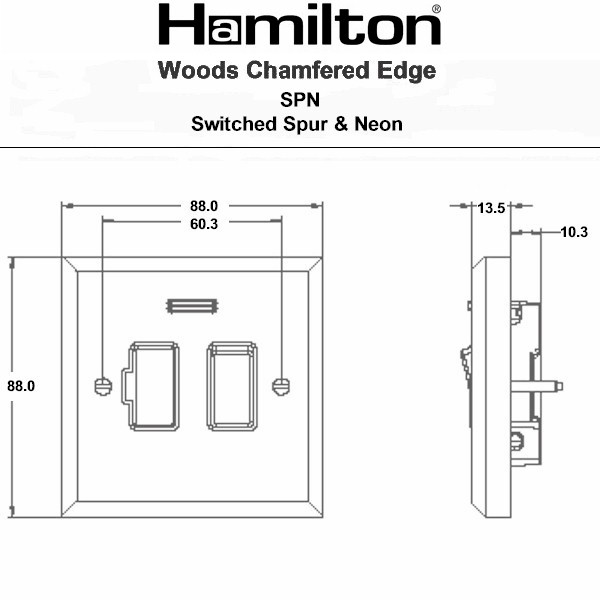

Dimension-Image

Luckins-TSI

391593200
Tech-Sheet-Page-Footer

WCLSPNAB-B – Woods Chamfered Light Oak 1 gang 13A Double Pole Fused Spur and Neon Antique Brass/Black
product-code

S WD CH-LO
family-code

S WOODS
last-inv

31/07/2020
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533210680
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

26
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Light Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole Fused Spur + Neon
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

12/05/2025
WoodEdge

Chamfered
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Light Oak
Subheader2

Woods Connection Units
QR-Instruction

https://online.fliphtml5.com/Hamilton/jfee/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Wood Cha L/O 13A DP Fused Spur+N AB/BL
Height

88.0mm
Width

88.0mm
Depth

13.5mm
