Description
Woods Chamfered Antique Mahogany 1 gang 13A Fuse Only Bright Chrome/Black
SKU: WCAFOBCB
Category: Woods Connection Units
Type
1 gang 13A Fuse OnlyPlate Finish
Antique MahoganyInsert Finish
Bright Chrome/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Woods |
| Page-Sort-Order | 030-026-011 |
| Insert-Type | 1 gang 13A Fuse Only |
| Insert-Colour | Bright Chrome/Black |
| Uf-ItmLabelTechInsert | FO |
| Uf-HAM-Plate-Range | Woods Chamfered |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Woods |
| Item-Long-Description | Woods Chamfered Antique Mahogany 1 gang 13A Fuse Only Bright Chrome/Black |
| PlateFinish | Woods Chamfered Antique Mahogany |
| EAN13-Barcode | 5017504934958 |
| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm |
| Switched-Poles | None |
| Current-Rating | 13 Amp |
| Maximum-Load | 13 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3 x2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 1363-4 |
| Commodity-Code | 85363010 |

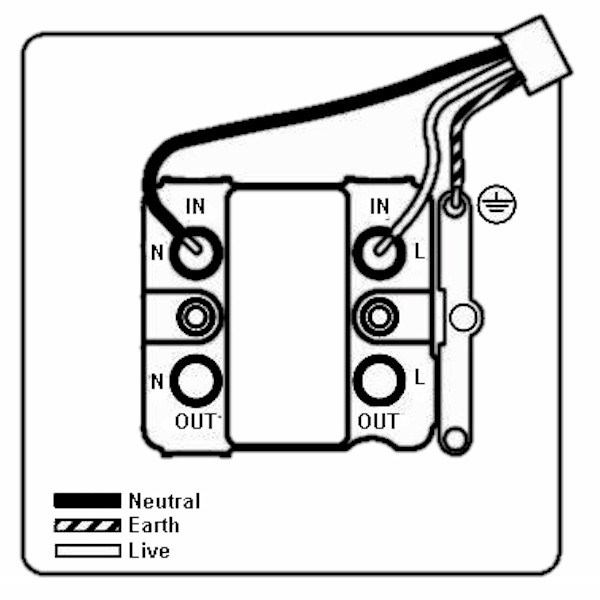

| Wiring-Image | WDFO.jpg |
| Item-Image | WCAFOBC-B.jpg |

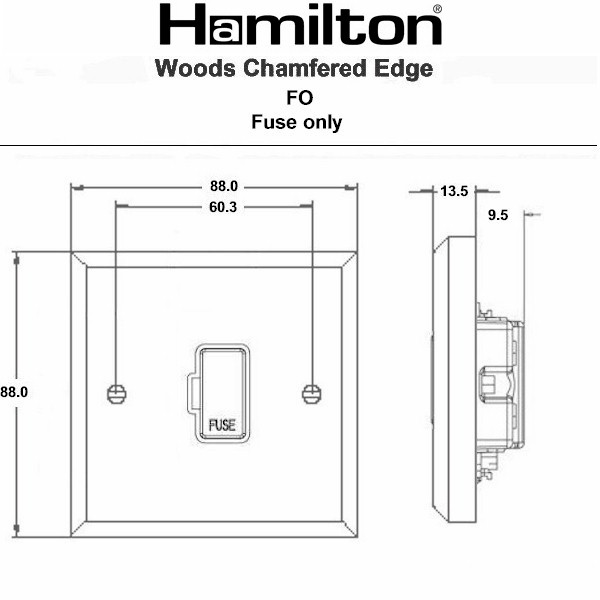

| Dimension-Image | TD-WCFO.jpg |
| Luckins-TSI | 391588367 |
| Tech-Sheet-Page-Footer | WCAFOBC-B – Woods Chamfered Antique Mahogany 1 gang 13A Fuse Only Bright Chrome/Black |
| product-code | S WD CH-AM |
| family-code | S WOODS |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533205857 |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 24 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 030 |
| HAM-SortOrder | 026 |
| InsertSortOrder | 011 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Antique Mahogany |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Fuse |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Bright Chrome |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 05/12/25 |
| WoodEdge | Chamfered |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Antique Mahogany |
| Subheader2 | Woods Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/srhp/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Wood Cha A/M 1g 13A Fuse Only BC/BL |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 13.5mm |
Download datasheet
