Wood Cha M/O Double Blank Plate

SKU: WCMBPD Category:
Wood Cha M/O Double Blank Plate
Wood Cha M/O Double Blank Plate - Image 2
Wood Cha M/O Double Blank Plate - Image 3
SKU: WCMBPD Category:

Type

Double Blank Plate

Plate Finish

Medium Oak

Insert Finish

N/A

Description

Woods Chamfered Medium Oak Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Woods
Page-Sort-Order

030-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Woods Chamfered
Uf-HAMPlate-Generic-Size

Double
Range-Name

Woods
Item-Long-Description

Woods Chamfered Medium Oak Double Blank Plate
PlateFinish

Woods Chamfered Medium Oak
EAN13-Barcode

5017504919894
Dimensions(Nominal)

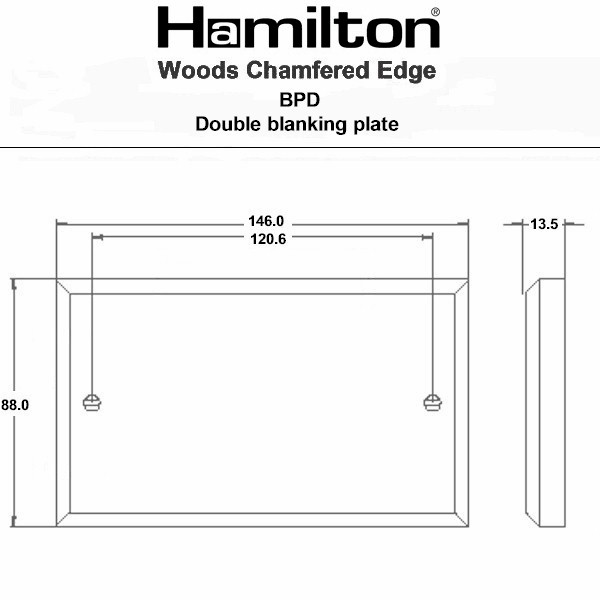

Double: Height = 88.0mm Width = 146.0mm Depth = 13.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

44149000
Item-Image

Dimension-Image

Luckins-TSI

391594364
Tech-Sheet-Page-Footer

WCMBPD – Woods Chamfered Medium Oak Double Blank Plate
product-code

S WD CH-MO
family-code

S WOODS
last-inv

28/09/2016
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533211841
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

30
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Medium Oak
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

12/05/2025
WoodEdge

Chamfered
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Medium Oak
Subheader2

Woods Blank Plates
IP-Rating

IP2XB
description

Wood Cha M/O Double Blank Plate
Height

88.0mm
Width

146.0mm
Depth

13.5mm
