Verve White 1g LEDITB100 2 way Dimmer WH

SKU: HM2031 Category:
Verve White 1g LEDITB100 2 way Dimmer WH
Verve White 1g LEDITB100 2 way Dimmer WH - Image 2
Verve White 1g LEDITB100 2 way Dimmer WH - Image 3
SKU: HM2031 Category:

Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

White

Insert Finish

White

Description

White 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Verve
Page-Sort-Order

050-012-001
Insert-Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

White
Uf-ItmLabelTechInsert

1XLEDITB
Uf-HAM-Plate-Range

Verve Box Fix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Verve
Item-Long-Description

White 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer White
PlateFinish

Verve Box Fix White
EAN13-Barcode

5052750550194
Dimensions(Nominal)

Single: Height = 86.7mm Width = 86.7mm Depth = 10.0mm
Switched-Poles

Single
Current-Rating

0.4A
Maximum-Load

5-100W (10 LED Lamps MAX)
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Dimension-Image

Luckins-TSI

434147801
Tech-Sheet-Page-Footer

HM2031 – White 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer White
product-code

S TRD-VVBX
family-code

S TRD VERV
last-inv

25/02/26
unit-weight

75.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533420564
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

050
HAM-SortOrder

012
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

25/02/26

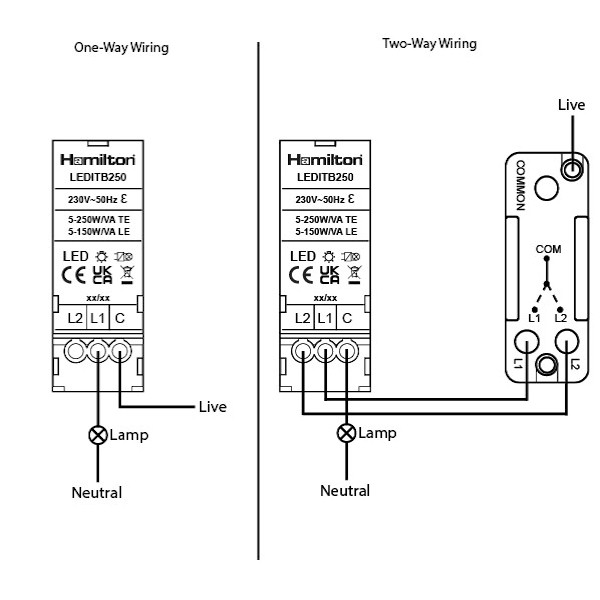

Wiring-Image

Item-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Weight

75 GR
Wattage

5-100W (10 LED Lamps MAX)
Voltage

230V AC
IP-Rating

IP2XD
description

Verve White 1g LEDITB100 2 way Dimmer WH
Height

86.7mm
Width

86.7mm
Depth

10.0mm
Plate-Finish

White
Subheader2

Verve Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1

Download datasheet
