Shr MB SP SS1 + USBx1 BL/BL

Shr MB SP SS1 + USBx1 BL/BL
Shr MB SP SS1 + USBx1 BL/BL - Image 2

Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1x2.1A

Plate Finish

Matt Black

Insert Finish

Black/Black

Description

Sheer Matt Black 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Black/Black – NOT Suitable for Over Painting

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-022-001
Insert-Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

SS1USBX1
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Matt Black 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Black/Black – NOT Suitable for Over Painting
PlateFinish

Sheer Box Matt Black
EAN13-Barcode

5017504089696

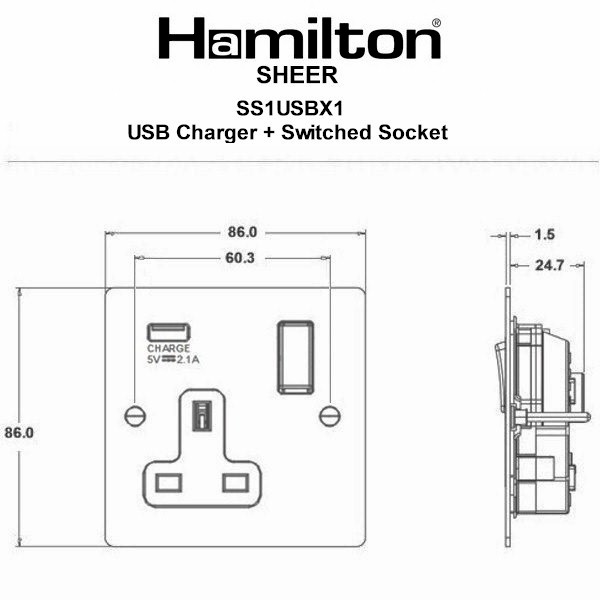

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

Single
Current-Rating

13 Amp, USB 1 x 2.1A
Maximum-Load

13 Amp, USB = 2.1A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Dimension-Image

Luckins-TSI

404398473
Tech-Sheet-Page-Footer

8MBSS1USBBL-B – Sheer Matt Black 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Black/Black – NOT Suitable for Over Painting
product-code

S SHR MB
family-code

S SHEER
last-inv

10/05/24
unit-weight

165.00000
weight-units

GR
Uf-LuckinsEDP

4533393015
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

022
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Single Pole
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

05/12/25
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Weight

165 GR
Voltage

180/250V AC, USB = 5V
IP-Rating

IP2XD
description

Shr MB SP SS1 + USBx1 BL/BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
Plate-Finish

Matt Black
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
