Sher PB 1g Isolated TV 1in/1out WH

Sher PB 1g Isolated TV 1in/1out WH
Sher PB 1g Isolated TV 1in/1out WH - Image 2
Sher PB 1g Isolated TV 1in/1out WH - Image 3
Sher PB 1g Isolated TV 1in/1out WH - Image 4

Type

1 gang Isolated TV 1in/1out

Plate Finish

Polished Brass

Insert Finish

White

Description

Sheer Polished Brass 1 gang Isolated TV 1in/1out White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-032-002
Insert-Type

1 gang Isolated TV 1in/1out
Insert-Colour

White
Uf-ItmLabelTechInsert

TVI
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Polished Brass 1 gang Isolated TV 1in/1out White
PlateFinish

Sheer Box Polished Brass
EAN13-Barcode

5017503030620

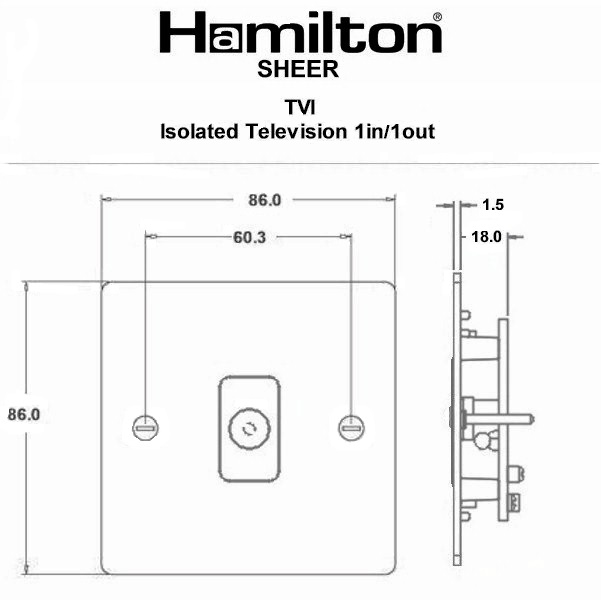

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385557524
Tech-Sheet-Page-Footer

81TVIW – Sheer Polished Brass 1 gang Isolated TV 1in/1out White
product-code

S SHR PB
family-code

S SHEER
last-inv

20/04/2022
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533117149
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

15
HAM-SortOrder

32
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Isolated
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Sher PB 1g Isolated TV 1in/1out WH
Height

86.0mm
Width

86.0mm
Depth

1.5mm
Plate-Finish

Polished Brass
Subheader2

Sheer Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
