Sher SB 2g 10AX 2 Way Rkr SB/BL

Sher SB 2g 10AX 2 Way Rkr SB/BL
Sher SB 2g 10AX 2 Way Rkr SB/BL - Image 2
Sher SB 2g 10AX 2 Way Rkr SB/BL - Image 3

Type

2 gang 10AX 2 Way Rocker

Plate Finish

Satin Brass

Insert Finish

Satin Brass/Black

Description

Sheer Satin Brass 2 gang 10AX 2 Way Rocker Satin Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-001-002
Insert-Type

2 gang 10AX 2 Way Rocker
Insert-Colour

Satin Brass/Black
Uf-ItmLabelTechInsert

MGR22
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Satin Brass 2 gang 10AX 2 Way Rocker Satin Brass/Black
PlateFinish

Sheer Box Satin Brass
EAN13-Barcode

5017503042227

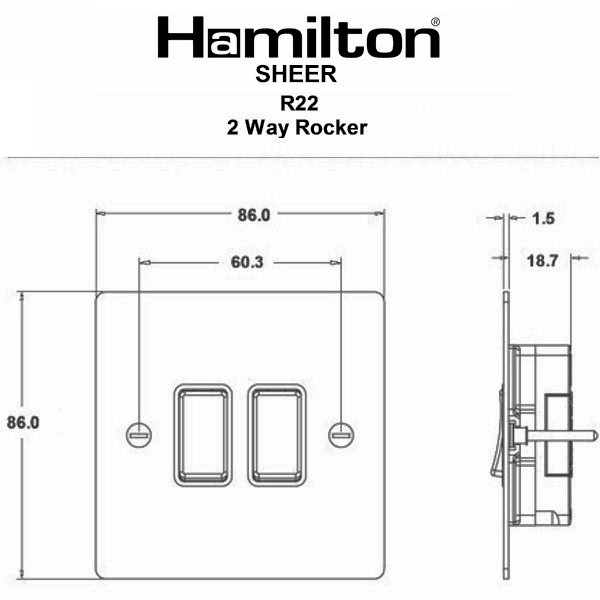

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385557935
Tech-Sheet-Page-Footer

82R22SB-B – Sheer Satin Brass 2 gang 10AX 2 Way Rocker Satin Brass/Black
product-code

S SHR SB
family-code

S SHEER
last-inv

22/01/2026
unit-weight

127.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533117550
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

15
HAM-SortOrder

1
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

2 Way
WEB-NumberofGangs

2
MainInsertColour

Satin Brass
TrimColour

Black
Last-Updated-At-Hamilton

23/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Satin Brass
Subheader2

Sheer Rocker Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Weight

127 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sher SB 2g 10AX 2 Way Rkr SB/BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
