Shr Rich Brz 1g 13A DP Swt Skt BL/BL

Shr Rich Brz 1g 13A DP Swt Skt BL/BL
Shr Rich Brz 1g 13A DP Swt Skt BL/BL - Image 2
Shr Rich Brz 1g 13A DP Swt Skt BL/BL - Image 3

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Richmond Bronze

Insert Finish

Black/Black

Description

Sheer Richmond Bronze 1 gang 13A Double Pole Switched Socket Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-021-001
Insert-Type

1 gang 13A Double Pole Switched Socket
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Richmond Bronze 1 gang 13A Double Pole Switched Socket Black/Black
PlateFinish

Sheer Box Richmond Bronze
EAN13-Barcode

5017504033293
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990
Wiring-Image

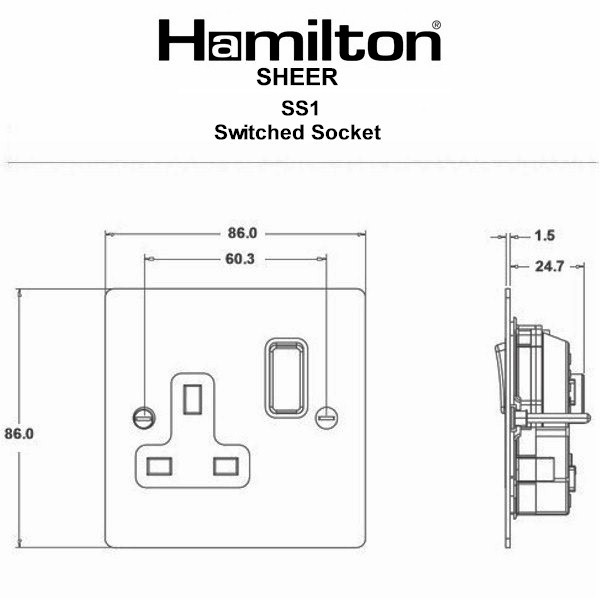

Dimension-Image

Luckins-TSI

405687808
Tech-Sheet-Page-Footer

8RBSS1BL-B – Sheer Richmond Bronze 1 gang 13A Double Pole Switched Socket Black/Black
product-code

S SHR RB
family-code

S SHEER
last-inv

10/02/26
unit-weight

134.00000
weight-units

GR
Uf-LuckinsEDP

4533393714
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

021
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

10/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Richmond Bronze
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Weight

134 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Shr Rich Brz 1g 13A DP Swt Skt BL/BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
