Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)

Plate Finish

Richmond Bronze

Insert Finish

Black

Description

Sheer Richmond Bronze Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-021-011
Insert-Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)
Insert-Colour

Black
Uf-ItmLabelTechInsert

SHS
Uf-HAM-Plate-Range

Sheer Box Vertical
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Richmond Bronze Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
PlateFinish

Sheer Box Vertical Richmond Bronze
EAN13-Barcode

5017504033279
Dimensions(Nominal)

Double: Height = 146.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

None
Current-Rating

20VA
Maximum-Load

200/250V input; 115/230V 20VA output
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

9x1mm²
Earth-Terminal-Capacity-2

6×1.5mm²
Earth-Terminal-Capacity-3

4×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 61558-2-5 + BS 4573
Additional-Notes

Must be mounted vertically. Shuttered :Yes. Box Depth 47mm
Commodity-Code

85366990
Wiring-Image

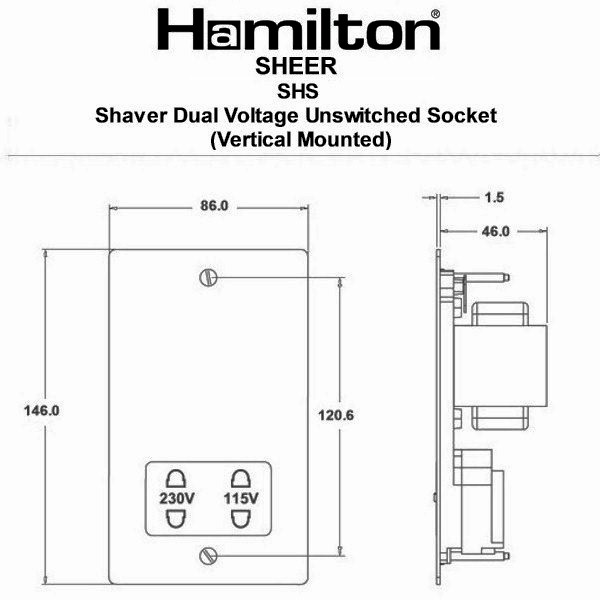

Dimension-Image

Luckins-TSI

405687772
Tech-Sheet-Page-Footer

8RBSHSB – Sheer Richmond Bronze Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
product-code

S SHR RB
family-code

S SHEER
last-inv

11/02/26
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533393688
Uf-HAMInnerBoxQty

2
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

021
InsertSortOrder

011
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Shaver Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

11/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

47mm
Plate-Finish

Richmond Bronze
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bzky/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Shr RB Shaver Dual Volt Socket BL
Height

146.0mm
Width

86.0mm
Depth

1.5mm
