Shr PB 1g 13A Unswt Skt BL

Shr PB 1g 13A Unswt Skt BL
Shr PB 1g 13A Unswt Skt BL - Image 2
Shr PB 1g 13A Unswt Skt BL - Image 3
Shr PB 1g 13A Unswt Skt BL - Image 4

Type

1 gang 13A Unswitched Socket

Plate Finish

Polished Brass

Insert Finish

Black

Description

Sheer Polished Brass 1 gang 13A Unswitched Socket Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-021-007
Insert-Type

1 gang 13A Unswitched Socket
Insert-Colour

Black
Uf-ItmLabelTechInsert

US13
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Polished Brass 1 gang 13A Unswitched Socket Black
PlateFinish

Sheer Box Polished Brass
EAN13-Barcode

5017503031078
Dimensions(Nominal)

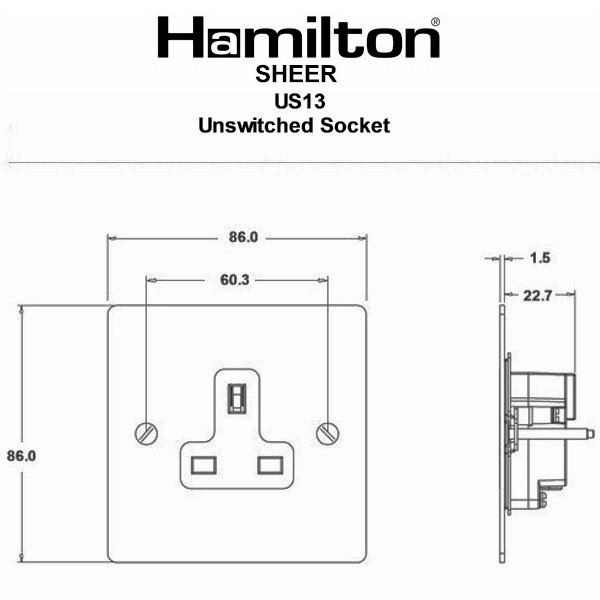

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3 x 4mm2
Earth-Terminal-Capacity-3

2 x 6mm2 Multi-strand
Earth-Terminal-Capacity-4

1 x 10mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391561672
Tech-Sheet-Page-Footer

81US13B – Sheer Polished Brass 1 gang 13A Unswitched Socket Black
product-code

S SHR PB
family-code

S SHEER
last-inv

13/06/24
unit-weight

107.00000
weight-units

GR
Uf-LuckinsEDP

4533192384
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

021
InsertSortOrder

007
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

27/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Brass
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Weight

107 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sher PB 1g 13A Unswt Skt BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
