Sher BK 1g 13A DP Swt Skt BK/BL

SKU: 88SS1BKB Category:
Sher BK 1g 13A DP Swt Skt BK/BL
Sher BK 1g 13A DP Swt Skt BK/BL - Image 2
Sher BK 1g 13A DP Swt Skt BK/BL - Image 3
Sher BK 1g 13A DP Swt Skt BK/BL - Image 4
SKU: 88SS1BKB Category:

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Black Nickel

Insert Finish

Black Nickel/Black

Description

Sheer Black Nickel 1 gang 13A Double Pole Switched Socket Black Nickel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-021-001
Insert-Type

1 gang 13A Double Pole Switched Socket
Insert-Colour

Black Nickel/Black
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Black Nickel 1 gang 13A Double Pole Switched Socket Black Nickel/Black
PlateFinish

Sheer Box Black Nickel
EAN13-Barcode

5017503882014

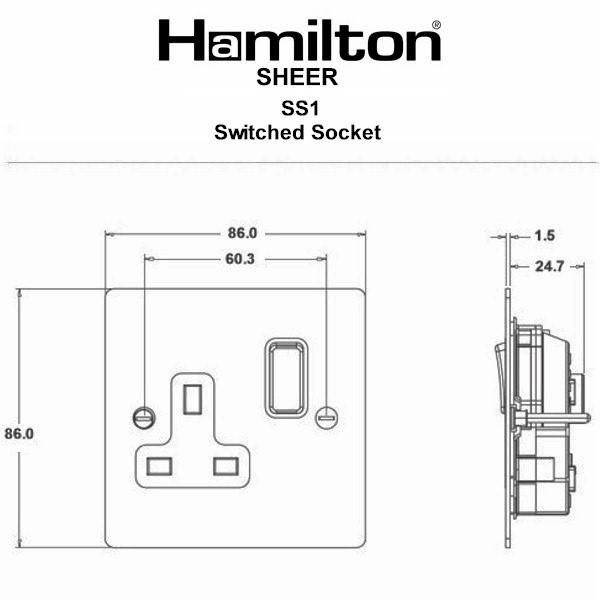

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

386905476
Tech-Sheet-Page-Footer

88SS1BK-B – Sheer Black Nickel 1 gang 13A Double Pole Switched Socket Black Nickel/Black
product-code

S SHR BK
family-code

S SHEER
last-inv

04/02/26
unit-weight

150.00000
weight-units

GR
Uf-LuckinsEDP

4533129807
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

021
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Black Nickel
TrimColour

Black
Last-Updated-At-Hamilton

04/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Black Nickel
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Weight

150 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sher BK 1g 13A DP Swt Skt BK/BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
