Shr BK 4 Euro Apert 100X50+Grid

SKU: 88EURO4 Category:
Shr BK 4 Euro Apert 100X50+Grid
Shr BK 4 Euro Apert 100X50+Grid - Image 2
Shr BK 4 Euro Apert 100X50+Grid - Image 3
SKU: 88EURO4 Category:

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Black Nickel

Insert Finish

N/A

Description

Sheer EuroFix Black Nickel Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-132-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Sheer EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer EuroFix Black Nickel Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Sheer EuroFix Black Nickel
EAN13-Barcode

5028690889199

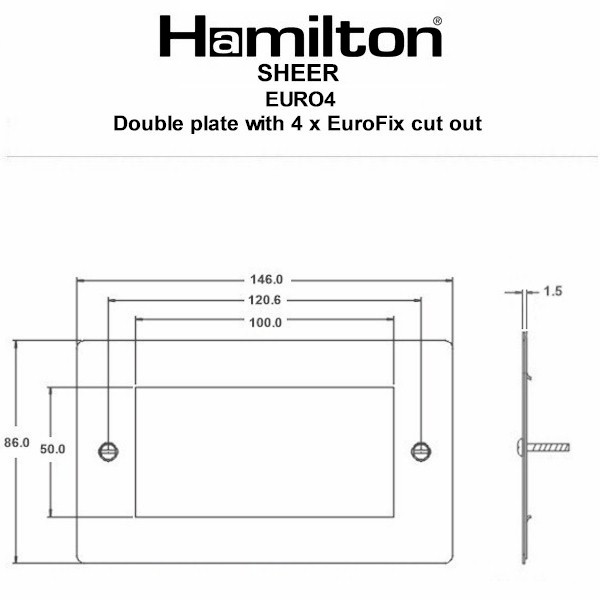

Dimensions(Nominal)

Double: Height = 86.0mm Width = 146.0mm Depth = 1.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74198090
Item-Image

Dimension-Image

Luckins-TSI

387384672
Tech-Sheet-Page-Footer

88EURO4 – Sheer EuroFix Black Nickel Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S EFix 88
family-code

S SHEER
last-inv

09/02/2026
unit-weight

139.00000
weight-units

GR
Uf-LuckinsEDP

4533143980
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

15
HAM-SortOrder

132
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

As Per Inserts
Weight

139 GR
Voltage

Insert Specific
IP-Rating

IPXXB
Height

86.0mm
Width

146.0mm
Depth

1.5mm
Plate-Finish

Black Nickel
Subheader2

Sheer Plates
