Name: Shr BK 4g Dly FL Plt
SKU: 88FLDLY4
Availability: InStock

Description

Sheer Black Nickel 4 gang Toggle Front Loading Plate – to be used with insert FLDLYXXX

Additional information

InsertColourTitle	Insert Finish/Surround Colour
Section-Name	Sheer
Page-Sort-Order	015-043-004
Subheader2	Sheer Grid-It FL
Insert-Type	4 gang Grid Fix Front Loading Aperture Plate with Grid
Plate-Finish	Black Nickel
Insert-Colour	N/A
QR-Instruction	https://online.fliphtml5.com/Hamilton/bjwn/#p=1
Uf-ItmLabelTechInsert	4GPFL
Uf-HAM-Plate-Range	Sheer GRID-IT FL
Uf-HAMPlate-Generic-Size	Double
Range-Name	Sheer
Patents-And-Trade-Marks	Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description	Sheer Black Nickel 4 gang Toggle Front Loading Plate – to be used with insert FLDLYXXX
PlateFinish	Sheer GRID-IT FL Black Nickel
EAN13-Barcode	5017503005260
Dimensions(Nominal)	Double: Height = 88.0mm Width = 144.5mm Depth = 5.0mm
Weight	99 GR
Fixing-Hole-Centres	Box Fixing = 120.6mm Grid Fixing = 110.00mm
Minimum-Wall-Box-Depth	As Per Insert
Current-Rating	n/a
Commodity-Code	73269098
Wiring-Image	WD-NONE.jpg

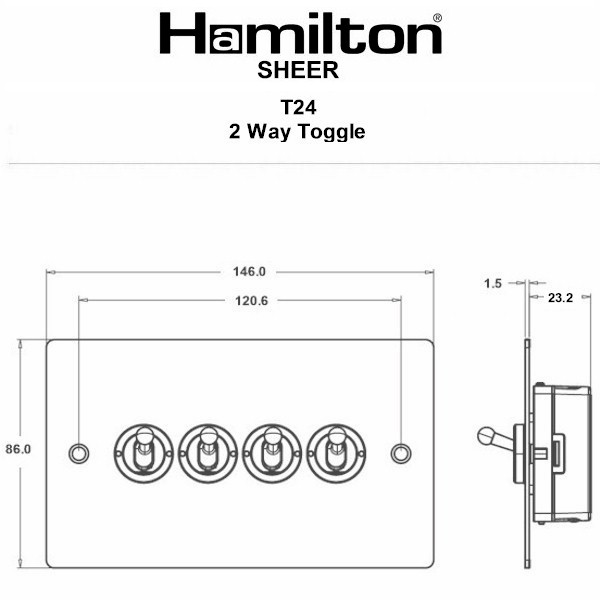

Dimension-Image	TD-8T24.jpg
Luckins-TSI	438400887
Tech-Sheet-Page-Footer	88FLDLY4 – Sheer Black Nickel 4 gang Toggle Front Loading Plate – to be used with insert FLDLYXXX
description	Sher BK 4g Dly FL Plt
product-code	S GR 88
family-code	S SHEER
unit-weight	98.80000
weight-units	GR
Uf-LuckinsEDP	4533459153
Uf-HAMInnerBoxQty	10
Uf-OuterBoxQty	100
Picture-Exists	No
Uf-ITMTechDataType	Plate
Uf-IncludeinPriceList	Yes
FamilySortOrder	15
HAM-SortOrder	43
InsertSortOrder	004
Generic-Size	Double
Height	88.0mm
Width	144.5mm
Depth	5.0mm
Box-Fixing-Hole-Centres	120.6mm
Grid-Fixing-Hole-Centres	110.00mm
Uf-HAMPlateFinish	Black Nickel
Uf-HAMFrameFinish	n/a
WEB-InsertType	Plate
WEB-NumberofGangs	4
MainInsertColour	N
TrimColour	A
Last-Updated-At-Hamilton	03/02/2026
