Shr EB 1g 20AX DP Rkr+Neon+CO EB/BL

Shr EB 1g 20AX DP Rkr+Neon+CO EB/BL
Shr EB 1g 20AX DP Rkr+Neon+CO EB/BL - Image 2
Shr EB 1g 20AX DP Rkr+Neon+CO EB/BL - Image 3

Type

1 gang 20AX Double Pole Rocker + Neon + Cable Outlet

Plate Finish

Etrium Bronze

Insert Finish

Etrium Bronze/Black

Description

Sheer Etrium Bronze 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Etrium Bronze/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-027-003
Subheader2

Sheer Double Pole Switches
Insert-Type

1 gang 20AX Double Pole Rocker + Neon + Cable Outlet
Plate-Finish

Etrium Bronze
Insert-Colour

Etrium Bronze/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

DPNC
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Etrium Bronze 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Etrium Bronze/Black
PlateFinish

Sheer Box Etrium Bronze
EAN13-Barcode

5017503003822
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

20AX
Voltage

220/250V AC
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Cable-Outlet-Minimum-Maximum

Min = 0.75mm² Max = 2.5mm²
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

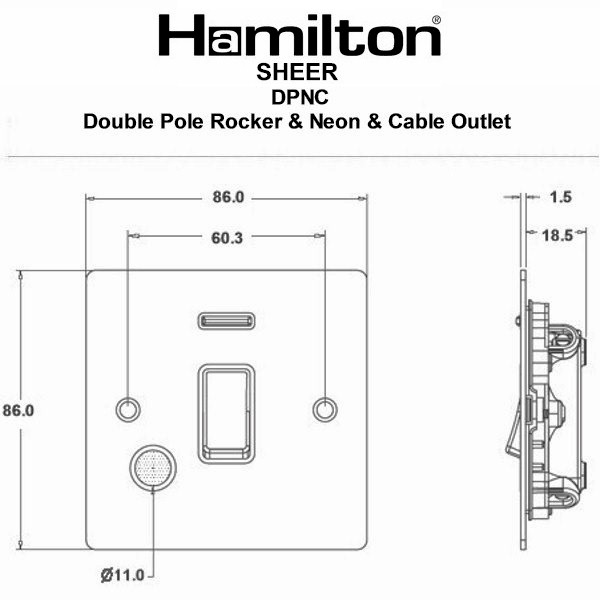

Dimension-Image

Luckins-TSI

438404511
Tech-Sheet-Page-Footer

8EBDPNCEB-B – Sheer Etrium Bronze 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Etrium Bronze/Black
description

Sher EB 1g 20AX DP Rkr+Neon+CO EB/BL
product-code

S SHR EB
family-code

S SHEER
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533462784
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

15
HAM-SortOrder

27
InsertSortOrder

003
Generic-Size

Single
Height

86.0mm
Width

86.0mm
Depth

1.5mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Cable-Outlet-Min

0.75mm²
Cable-Outlet-Max

2.5mm²
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon + Cable Outlet
WEB-NumberofGangs

1
MainInsertColour

Etrium Bronze
TrimColour

Black
Last-Updated-At-Hamilton

02/03/2026
