Sheer Antique Brass 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Antique Brass/Black
SKU: 89DPNCABB
Category: Sheer Double Pole Switches
Type
1 gang 20AX Double Pole Rocker + Neon + Cable OutletPlate Finish
Antique BrassInsert Finish
Antique Brass/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Sheer |
| Page-Sort-Order | 015-027-003 |
| Subheader2 | Sheer Double Pole Switches |
| Insert-Type | 1 gang 20AX Double Pole Rocker + Neon + Cable Outlet |
| Plate-Finish | Antique Brass |
| Insert-Colour | Antique Brass/Black |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/efun/#p=1 |
| Uf-ItmLabelTechInsert | DPNC |
| Uf-HAM-Plate-Range | Sheer Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Sheer |
| Patents-And-Trade-Marks | Sheer is a Registered Trade Mark No. 2296586 |
| Item-Long-Description | Sheer Antique Brass 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Antique Brass/Black |
| PlateFinish | Sheer Box Antique Brass |
| EAN13-Barcode | 5017504110321 |

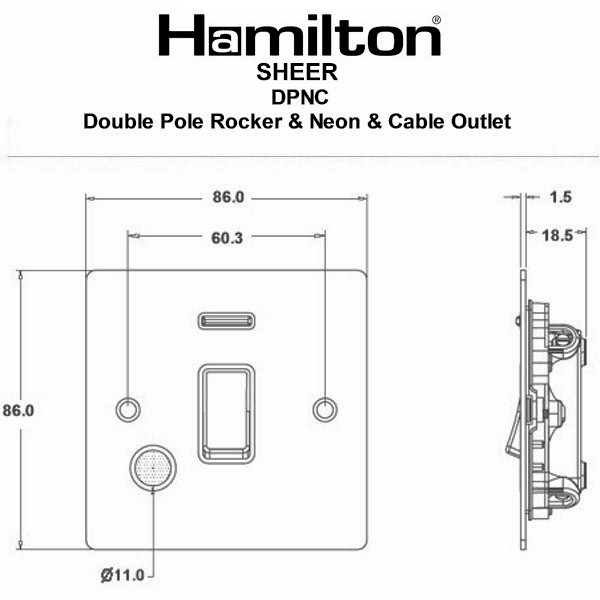

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm |
| Weight | 116 GR |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Switched-Poles | Double |
| Current-Rating | 20AX |
| Voltage | 220/250V AC |
| Maximum-Load | 20 Amp inductive |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 3×2.5mm² |
| Terminal-Capacity-2 | 2x4mm² Multi-Strand |
| Terminal-Capacity-3 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Cable-Outlet-Minimum-Maximum | Min = 0.75mm² Max = 2.5mm² |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |

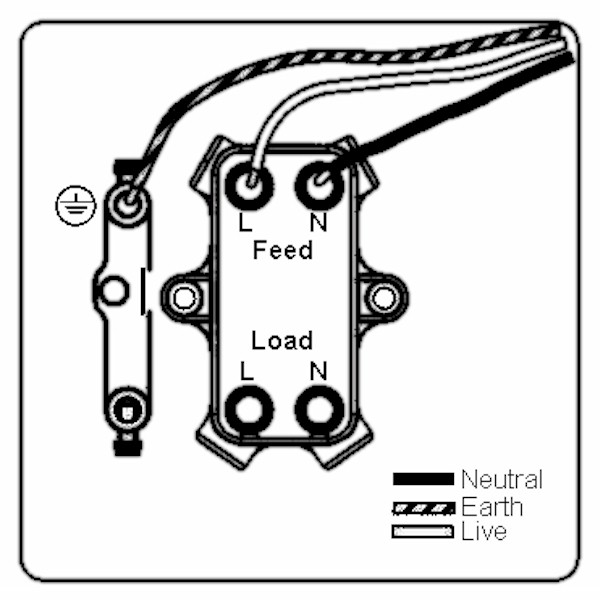

| Wiring-Image | WD20DP.jpg |
| Dimension-Image | TD-8DPNC.jpg |
| Luckins-TSI | 436620274 |
| Tech-Sheet-Page-Footer | 89DPNCAB-B – Sheer Antique Brass 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Antique Brass/Black |
| description | Sher AB 1g 20AX DP Rkr+Neon+CO AB/BL |
| product-code | S SHR AB |
| family-code | S SHEER |
| unit-weight | 116.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533446483 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 15 |
| HAM-SortOrder | 27 |
| InsertSortOrder | 003 |
| Generic-Size | Single |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 1.5mm |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Cable-Outlet-Min | 0.75mm² |
| Cable-Outlet-Max | 2.5mm² |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Double Pole + Neon + Cable Outlet |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Antique Brass |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 02/03/2026 |
