Description
Sheer Bright Chrome 1 gang 13A Double Pole Fused Spur and Neon and Cable Outlet Bright Chrome/Quartz Gray
SKU: 87SPNCBCQG
Category: Sheer Connection Units
Type
1 gang 13A Double Pole Fused Spur + Neon + Cable OutletPlate Finish
Bright ChromeInsert Finish
Bright Chrome/Quartz GrayAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Sheer |
| Page-Sort-Order | 015-026-003 |
| Subheader2 | Sheer Connection Units |
| Insert-Type | 1 gang 13A Double Pole Fused Spur + Neon + Cable Outlet |
| Plate-Finish | Bright Chrome |
| Insert-Colour | Bright Chrome/Quartz Gray |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/jfee/#p=1 |
| Uf-ItmLabelTechInsert | SPNC |
| Uf-HAM-Plate-Range | Sheer Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Sheer |
| Patents-And-Trade-Marks | Sheer is a Registered Trade Mark No. 2296586 |
| Item-Long-Description | Sheer Bright Chrome 1 gang 13A Double Pole Fused Spur and Neon and Cable Outlet Bright Chrome/Quartz Gray |
| PlateFinish | Sheer Box Bright Chrome |
| EAN13-Barcode | 5017503007219 |

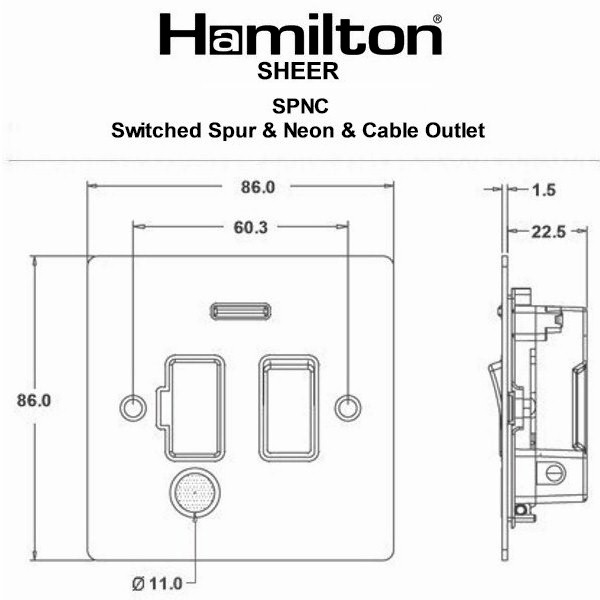

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm |
| Weight | 135 GR |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Switched-Poles | Double |
| Current-Rating | 13 Amp |
| Voltage | 220/250V AC |
| Maximum-Load | 13 Amp |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 3×2.5mm² |
| Terminal-Capacity-2 | 2x4mm² Multi-Strand |
| Terminal-Capacity-3 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Maximum-Installation-Altitud | 2000m |
| Cable-Outlet-Minimum-Maximum | Min = 0.75mm² Max = 2.5mm² |
| Standard-Approval | BS 1363-4 |
| Additional-Notes | Cable Outlets Fitted with Clamps:Yes |
| Commodity-Code | 85363010 |
| Wiring-Image | WDSP.jpg |
| Dimension-Image | TD-8SPNC.jpg |
| Luckins-TSI | 438591550 |
| Tech-Sheet-Page-Footer | 87SPNCBC-QG – Sheer Bright Chrome 1 gang 13A Double Pole Fused Spur and Neon and Cable Outlet Bright Chrome/Quartz Gray |
| description | Sher BC 13A DP Fuse SP+N+CO BC/QG |
| product-code | S SHR BC |
| family-code | S SHEER |
| unit-weight | 135.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533466502 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 15 |
| HAM-SortOrder | 26 |
| InsertSortOrder | 003 |
| Generic-Size | Single |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 1.5mm |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Cable-Outlet-Min | 0.75mm² |
| Cable-Outlet-Max | 2.5mm² |
| Uf-HAMPlateFinish | Bright Chrome |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Double Pole Fused Spur + Neon + Cable Outlet |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Bright Chrome |
| TrimColour | Quartz Gray |
| Last-Updated-At-Hamilton | 02/03/2026 |
