Sher BK 13A DP Fused Spur+N BK/BL

SKU: 88SPNBKB Category:
Sher BK 13A DP Fused Spur+N BK/BL
Sher BK 13A DP Fused Spur+N BK/BL - Image 2
Sher BK 13A DP Fused Spur+N BK/BL - Image 3
Sher BK 13A DP Fused Spur+N BK/BL - Image 4
SKU: 88SPNBKB Category:

Type

1 gang 13A Double Pole Fused Spur + Neon

Plate Finish

Black Nickel

Insert Finish

Black Nickel/Black

Description

Sheer Black Nickel 1 gang 13A Double Pole Fused Spur and Neon Black Nickel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-026-002
Insert-Type

1 gang 13A Double Pole Fused Spur + Neon
Insert-Colour

Black Nickel/Black
Uf-ItmLabelTechInsert

SPN
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Black Nickel 1 gang 13A Double Pole Fused Spur and Neon Black Nickel/Black
PlateFinish

Sheer Box Black Nickel
EAN13-Barcode

5017503882922
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010
Wiring-Image

Item-Image

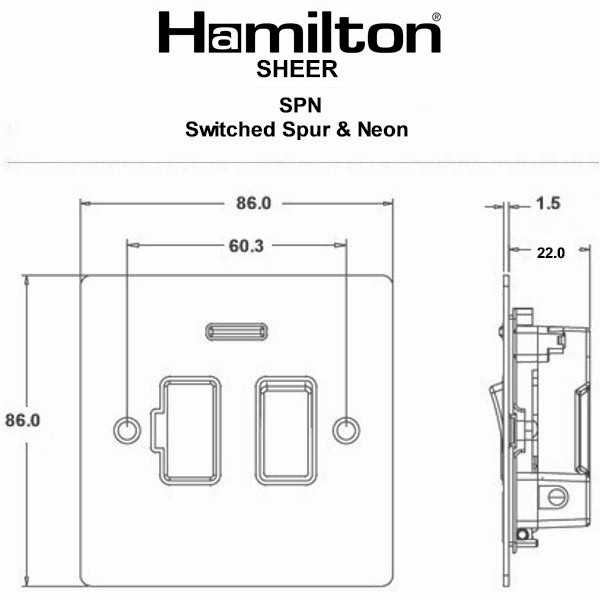

Dimension-Image

Luckins-TSI

386905463
Tech-Sheet-Page-Footer

88SPNBK-B – Sheer Black Nickel 1 gang 13A Double Pole Fused Spur and Neon Black Nickel/Black
product-code

S SHR BK
family-code

S SHEER
last-inv

24/02/26
unit-weight

120.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533129797
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

026
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole Fused Spur + Neon
WEB-NumberofGangs

1
MainInsertColour

Black Nickel
TrimColour

Black
Last-Updated-At-Hamilton

24/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Black Nickel
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/jfee/#p=1
Weight

120 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sher BK 13A DP Fused Spur+N BK/BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
