Sher AB 1g 13A DP Fused Spur AB/BL

SKU: 89SPABB Category:
Sher AB 1g 13A DP Fused Spur AB/BL
Sher AB 1g 13A DP Fused Spur AB/BL - Image 2
Sher AB 1g 13A DP Fused Spur AB/BL - Image 3
Sher AB 1g 13A DP Fused Spur AB/BL - Image 4
SKU: 89SPABB Category:

Type

1 gang 13A Double Pole Fused Spur

Plate Finish

Antique Brass

Insert Finish

Antique Brass/Black

Description

Sheer Antique Brass 1 gang 13A Double Pole Fused Spur Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer
Page-Sort-Order

015-026-001
Insert-Type

1 gang 13A Double Pole Fused Spur
Insert-Colour

Antique Brass/Black
Uf-ItmLabelTechInsert

SP
Uf-HAM-Plate-Range

Sheer Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer
Patents-And-Trade-Marks

Sheer is a Registered Trade Mark No. 2296586
Item-Long-Description

Sheer Antique Brass 1 gang 13A Double Pole Fused Spur Antique Brass/Black
PlateFinish

Sheer Box Antique Brass
EAN13-Barcode

5017503892907
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010
Wiring-Image

Item-Image

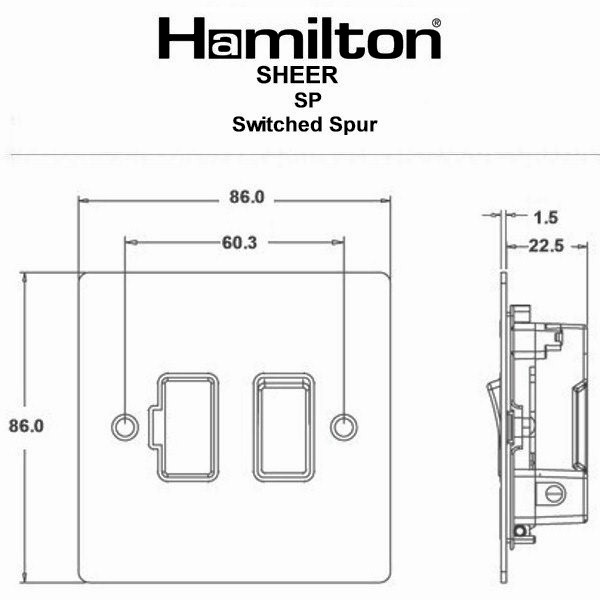

Dimension-Image

Luckins-TSI

386905968
Tech-Sheet-Page-Footer

89SPAB-B – Sheer Antique Brass 1 gang 13A Double Pole Fused Spur Antique Brass/Black
product-code

S SHR AB
family-code

S SHEER
last-inv

24/02/26
unit-weight

160.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533130294
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

015
HAM-SortOrder

026
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole Fused Spur
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

24/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Antique Brass
Subheader2

Sheer Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/jfee/#p=1
Weight

160 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sher AB 1g 13A DP Fused Spur AB/BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm
