Shr G2 GA DP SS2+USB+USB C GA/QG

Shr G2 GA DP SS2+USB+USB C GA/QG
Shr G2 GA DP SS2+USB+USB C GA/QG - Image 2

Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2x2.4A (4.8A Total)

Plate Finish

Anthra Gray

Insert Finish

Anthra Gray/Quartz Grey

Description

Sheer G2 Anthra Gray 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Anthra Gray/Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-023-002
Insert-Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2×2.4A (4.8A Total)
Insert-Colour

Anthra Gray/Quartz Grey
Uf-ItmLabelTechInsert

SS2USBC
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Anthra Gray 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Anthra Gray/Quartz Grey
PlateFinish

Sheer G2 Anthra Gray
EAN13-Barcode

5017504097929
Dimensions(Nominal)

Double: Height = 85mm Width = 144mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

Double
Current-Rating

13 Amp, 1 x 2.4A Type A + 1 x 2.4A Type C
Maximum-Load

13 Amp, USB TYPE A & C = 2.4A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

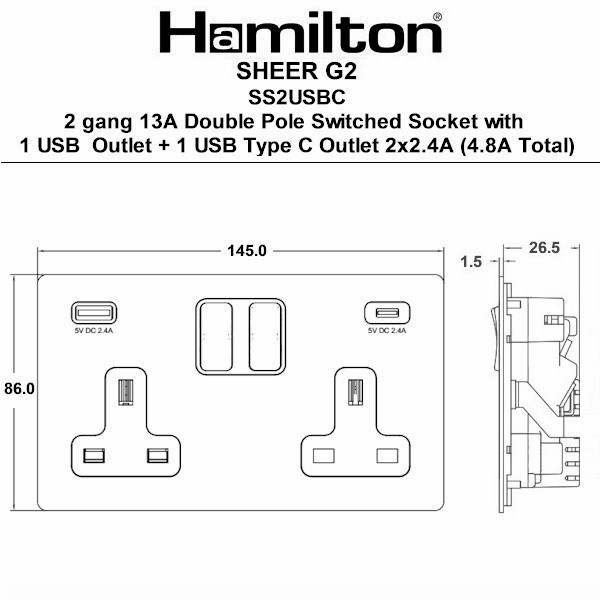

Dimension-Image

Luckins-TSI

435715821
Tech-Sheet-Page-Footer

8G2ASS2USBCGA-QG – Sheer G2 Anthra Gray 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Anthra Gray/Quartz Grey
product-code

S SHG2 GA
family-code

S SHEER G2
last-inv

12/09/2025
unit-weight

285.00000
weight-units

GR
Uf-LuckinsEDP

4533430279
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

23
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Anthra Gray
TrimColour

Quartz Grey
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Weight

285 GR
Voltage

180/250V AC USB TYPE A & C =5V
IP-Rating

IP2XD
description

Sher G2 Anthra DP SS2+USB+USB C GA/QG
Height

85mm
Width

144mm
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Anthra Gray
Subheader2

Sheer G2 USB Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
