Sheer G2 AB SP SS1 + USBx1 AB/BL

SKU: 8G29SS1USBABB Category:
Sheer G2 AB SP SS1 + USBx1 AB/BL
Sheer G2 AB SP SS1 + USBx1 AB/BL - Image 2
Sheer G2 AB SP SS1 + USBx1 AB/BL - Image 3
SKU: 8G29SS1USBABB Category:

Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1x2.1A

Plate Finish

Antique Brass

Insert Finish

Antique Brass/Black

Description

Sheer G2 Antique Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-022-001
Insert-Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A
Insert-Colour

Antique Brass/Black
Uf-ItmLabelTechInsert

SS1USBX1
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Antique Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Antique Brass/Black
PlateFinish

Sheer G2 Antique Brass
EAN13-Barcode

5017504097387
Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

Single
Current-Rating

13 Amp, USB 1 x 2.1A
Maximum-Load

13 Amp, USB = 2.1A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990

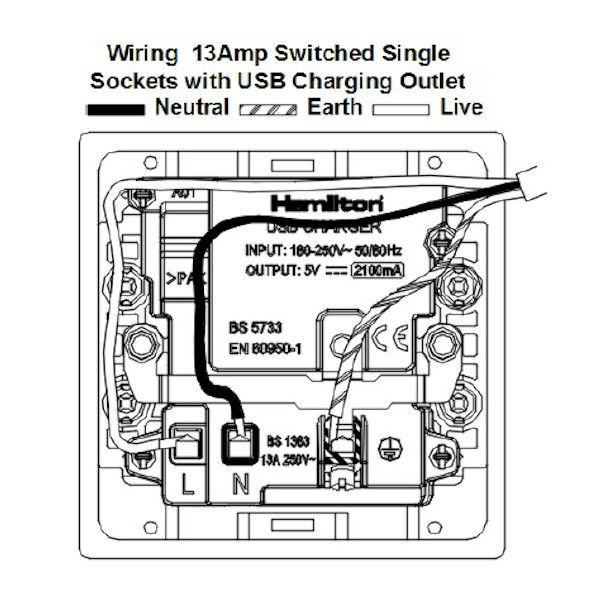

Wiring-Image

Item-Image

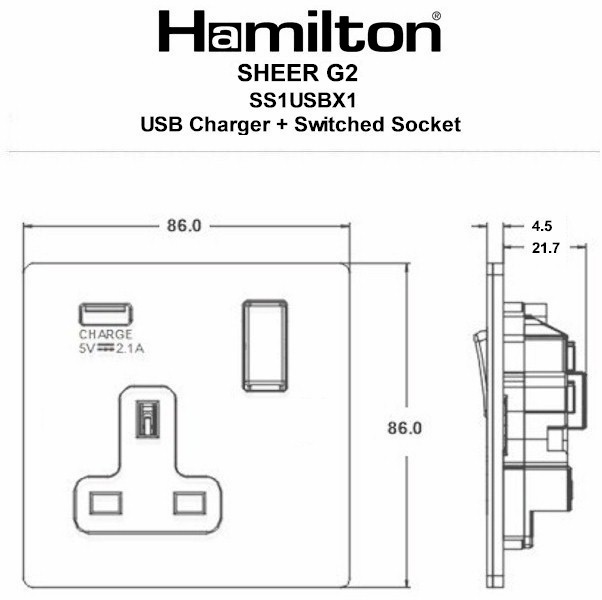

Dimension-Image

Luckins-TSI

435715177
Tech-Sheet-Page-Footer

8G29SS1USBAB-B – Sheer G2 Antique Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Antique Brass/Black
product-code

S SHG2 AB
family-code

S SHEER G2
last-inv

12/02/26
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533429620
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

016
HAM-SortOrder

022
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Single Pole
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

12/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC, USB = 5V
IP-Rating

IP2XD
description

Sheer G2 AB SP SS1 + USBx1 AB/BL
Height

85mm
Width

85mm
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Antique Brass
Subheader2

Sheer G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
