Sheer G2 Anthra 1g Telephone Master QG

SKU: 8G2ATCMQG Category:
Sheer G2 Anthra 1g Telephone Master QG
Sheer G2 Anthra 1g Telephone Master QG - Image 2
Sheer G2 Anthra 1g Telephone Master QG - Image 3
SKU: 8G2ATCMQG Category:

Type

1 gang Telephone Master

Plate Finish

Anthra Gray

Insert Finish

Quartz Grey

Description

Sheer G2 Anthra Gray 1 gang Telephone Master Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-031-003
Insert-Type

1 gang Telephone Master
Insert-Colour

Quartz Grey
Uf-ItmLabelTechInsert

TCM
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Anthra Gray 1 gang Telephone Master Quartz Grey
PlateFinish

Sheer G2 Anthra Gray
EAN13-Barcode

5017504097998
Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

N/A
Current-Rating

n/a
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

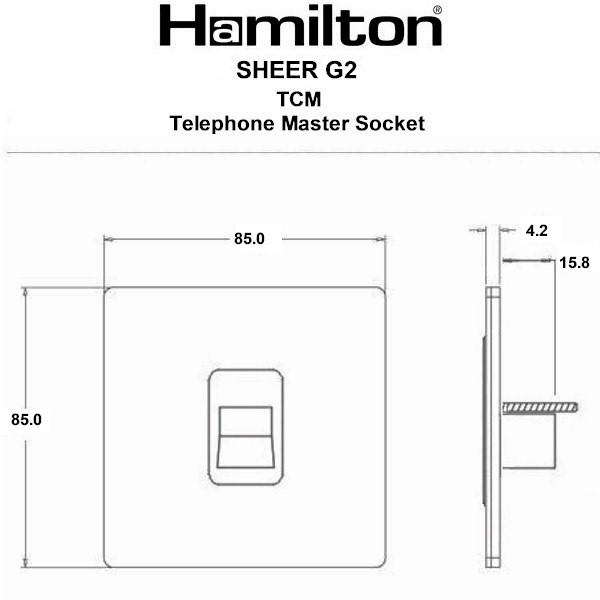

Dimension-Image

Luckins-TSI

435715902
Tech-Sheet-Page-Footer

8G2ATCMQG – Sheer G2 Anthra Gray 1 gang Telephone Master Quartz Grey
product-code

S SHG2 GA
family-code

S SHEER G2
last-inv

03/11/2024
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533430350
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

31
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Master
WEB-NumberofGangs

1
MainInsertColour

Quartz Grey
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Sheer G2 Anthra 1g Telephone Master QG
Height

85mm
Width

85mm
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Anthra Gray
Subheader2

Sheer G2 Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
