Sheer G2 AB 1g Isolated TV 1in/1out BL

SKU: 8G29TVIB Category:
Sheer G2 AB 1g Isolated TV 1in/1out BL
Sheer G2 AB 1g Isolated TV 1in/1out BL - Image 2
Sheer G2 AB 1g Isolated TV 1in/1out BL - Image 3
Sheer G2 AB 1g Isolated TV 1in/1out BL - Image 4
SKU: 8G29TVIB Category:

Type

1 gang Isolated TV 1in/1out

Plate Finish

Antique Brass

Insert Finish

Black

Description

Sheer G2 Antique Brass 1 gang Isolated TV 1in/1out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-032-002
Insert-Type

1 gang Isolated TV 1in/1out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TVI
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Antique Brass 1 gang Isolated TV 1in/1out Black
PlateFinish

Sheer G2 Antique Brass
EAN13-Barcode

5017504097516

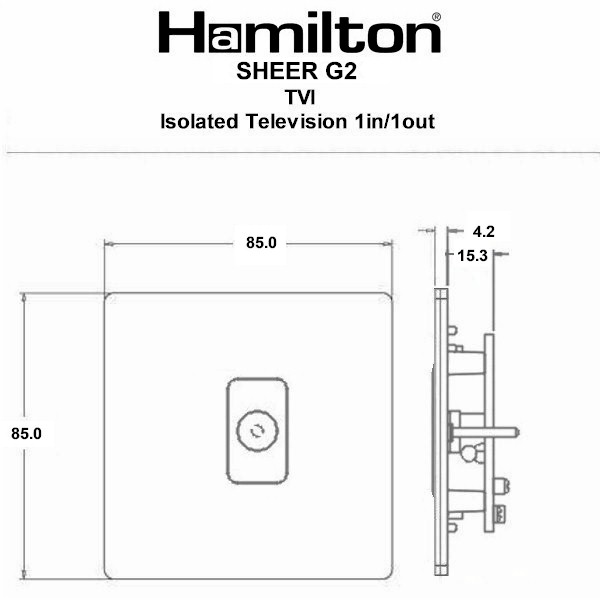

Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

N/A
Current-Rating

n/a
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

435715339
Tech-Sheet-Page-Footer

8G29TVIB – Sheer G2 Antique Brass 1 gang Isolated TV 1in/1out Black
product-code

S SHG2 AB
family-code

S SHEER G2
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533429785
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

32
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Isolated
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Sheer G2 AB 1g Isolated TV 1in/1out BL
Height

85mm
Width

85mm
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Antique Brass
Subheader2

Sheer G2 Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
