Shr G2 MB 1g 13A DP Swt Skt BL/BL

Shr G2 MB 1g 13A DP Swt Skt BL/BL
Shr G2 MB 1g 13A DP Swt Skt BL/BL - Image 2
Shr G2 MB 1g 13A DP Swt Skt BL/BL - Image 3
Shr G2 MB 1g 13A DP Swt Skt BL/BL - Image 4

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Matt Black

Insert Finish

Black/Black

Description

Sheer G2 Matt Black 1 gang 13A Double Pole Switched Socket Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-021-001
Insert-Type

1 gang 13A Double Pole Switched Socket
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Matt Black 1 gang 13A Double Pole Switched Socket Black/Black
PlateFinish

Sheer G2 Matt Black
EAN13-Barcode

5017504098926
Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990
Wiring-Image

Item-Image

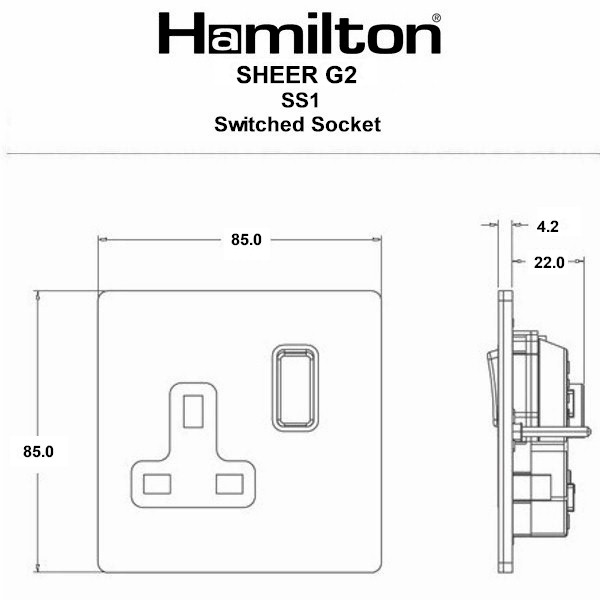

Dimension-Image

Luckins-TSI

435717023
Tech-Sheet-Page-Footer

8G2MBSS1BL-B – Sheer G2 Matt Black 1 gang 13A Double Pole Switched Socket Black/Black
product-code

S SHG2 MB
family-code

S SHEER G2
last-inv

20/01/2026
unit-weight

137.00000
weight-units

GR
Uf-LuckinsEDP

4533431472
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

21
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Matt Black
Subheader2

Sheer G2 Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Weight

137 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sheer G2 MB 1g 13A DP Swt Skt BL/BL
Height

85mm
Width

85mm
Depth

1.5mm + 2.7mm Gasket
