Shr G2 AB 2 Euro Apert 50X50+Grid

SKU: 8G29EURO2 Category:
Shr G2 AB 2 Euro Apert 50X50+Grid
Shr G2 AB 2 Euro Apert 50X50+Grid - Image 2
Shr G2 AB 2 Euro Apert 50X50+Grid - Image 3
SKU: 8G29EURO2 Category:

Type

2 gang EuroFix 50x50mm Apertured Plate with Grid

Plate Finish

Antique Brass

Insert Finish

N/A

Description

Sheer G2 EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-132-002
Insert-Type

2 gang EuroFix 50x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO2
Uf-HAM-Plate-Range

Sheer G2 EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
PlateFinish

Sheer G2 EuroFix Antique Brass
EAN13-Barcode

5017504097226
Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

N/A
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Wiring-Image

Item-Image

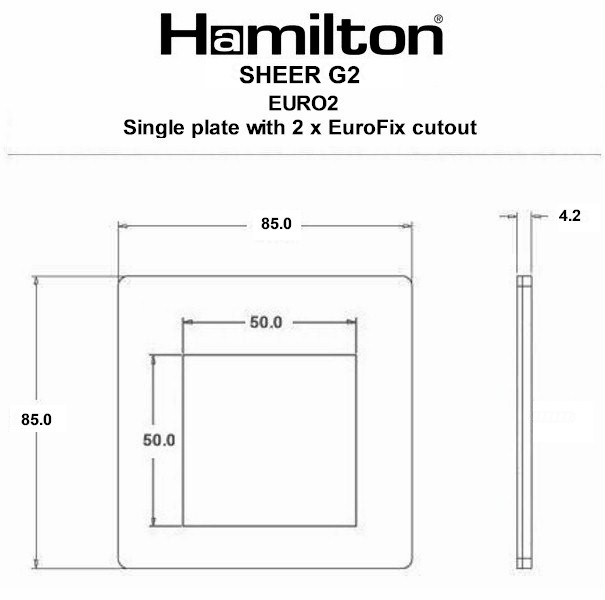

Dimension-Image

Luckins-TSI

435715009
Tech-Sheet-Page-Footer

8G29EURO2 – Sheer G2 EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
product-code

S EF 8G29
family-code

S SHEER G2
last-inv

24/02/2026
unit-weight

77.00000
weight-units

GR
Uf-LuckinsEDP

4533429455
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

132
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

2
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Inserts
Weight

77 GR
Voltage

Insert Specific
IP-Rating

IPXXB
Height

85mm
Width

85mm
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Antique Brass
Subheader2

Sheer G2 Plates
