Shr G2 SB 3g 20AX 2Way Toggle SB

Shr G2 SB 3g 20AX 2Way Toggle SB
Shr G2 SB 3g 20AX 2Way Toggle SB - Image 2
Shr G2 SB 3g 20AX 2Way Toggle SB - Image 3
Shr G2 SB 3g 20AX 2Way Toggle SB - Image 4

Type

3 gang 20AX 2 Way FL Dolly

Plate Finish

Satin Brass

Insert Finish

Satin Brass

Description

Sheer G2 Satin Brass 3 gang 20AX 2 Way Toggle Satin Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-016-003
Insert-Type

3 gang 20AX 2 Way FL Dolly
Insert-Colour

Satin Brass
Uf-ItmLabelTechInsert

T23-FLDLY
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Satin Brass 3 gang 20AX 2 Way Toggle Satin Brass
PlateFinish

Sheer G2 Satin Brass
EAN13-Barcode

5017504095147

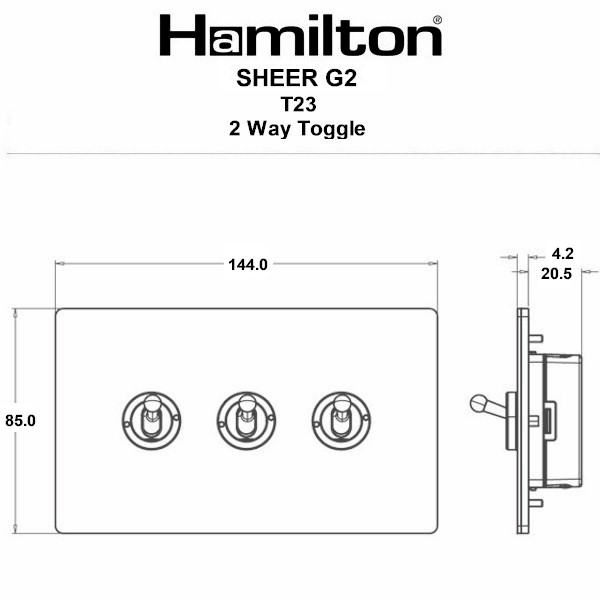

Dimensions(Nominal)

Double: Height = 85mm Width = 144mm Depth = 1.5mm + 2.7mm Gasket
Current-Rating

20AX
Commodity-Code

85365080

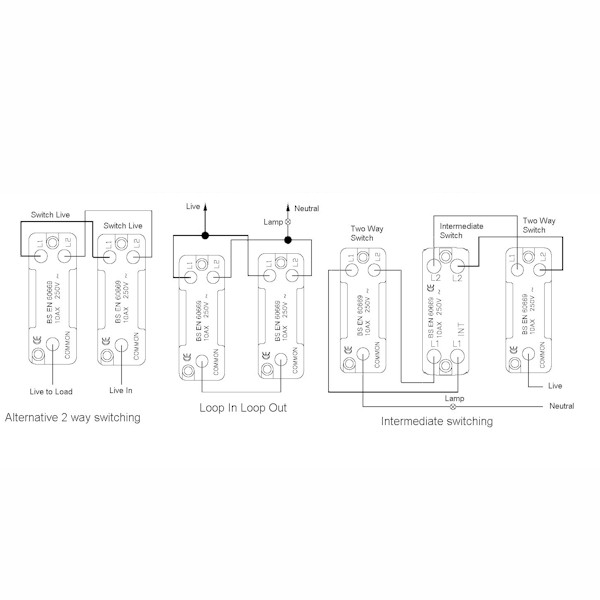

Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

435711469
Tech-Sheet-Page-Footer

8G22T23 – Sheer G2 Satin Brass 3 gang 20AX 2 Way Toggle Satin Brass
product-code

S SHG2 SB
family-code

S SHEER G2
last-inv

18/07/2025
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533425912
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

16
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

53mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

2 Way
WEB-NumberofGangs

3
MainInsertColour

Satin Brass
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Brass
Subheader2

Sheer G2 Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
description

Sheer G2 SB 3g 20AX 2Way Toggle SB
Height

85mm
Width

144mm
Depth

1.5mm + 2.7mm Gasket
