Shr G2 AB 1g LEDITB100 2 way Dimmer AB

SKU: 8G291XLEDITB100 Category:
Shr G2 AB 1g LEDITB100 2 way Dimmer AB
Shr G2 AB 1g LEDITB100 2 way Dimmer AB - Image 2
Shr G2 AB 1g LEDITB100 2 way Dimmer AB - Image 3
SKU: 8G291XLEDITB100 Category:

Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Antique Brass

Insert Finish

Antique Brass

Description

Sheer G2 Antique Brass 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-012-001
Insert-Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Antique Brass
Uf-ItmLabelTechInsert

1XLEDITB
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Antique Brass 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
PlateFinish

Sheer G2 Antique Brass
EAN13-Barcode

5.0175E+12

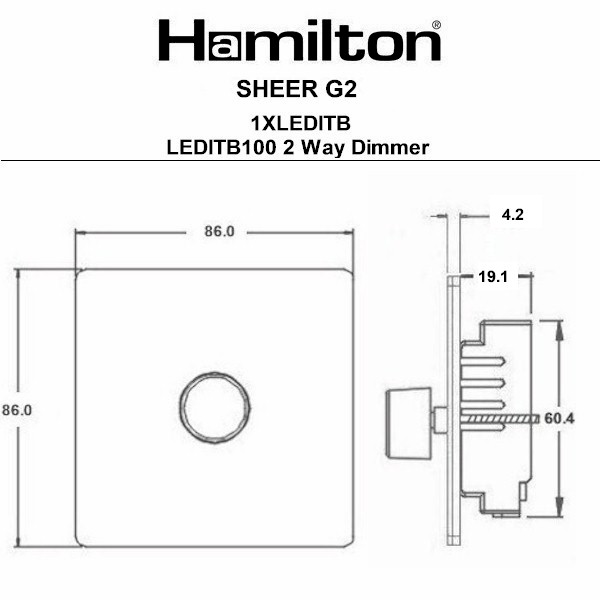

Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

Single
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Commodity-Code

85365005
Wiring-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/wiring_images/WDLED250.jpg
Item-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/item_images/8G291XLEDITB100.jpg
Dimension-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/dimension_images/TD-8G21XLEDITB.jpg
Luckins-TSI

435714741
product-code

S SHG2 AB
family-code

S SHEER G2
last-inv

14/01/2026
unit-weight

0
weight-units

GR
Uf-LuckinsEDP

4533429196
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

16
HAM-SortOrder

12
InsertSortOrder

1
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
Current-Rating

0.4A
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Antique Brass
Subheader9019

Sheer G2 Dimmers
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
