Sheer G2 AB 3g LEDITB100 2 way Dimmer AB

SKU: 8G293XLEDITB100 Category:
Sheer G2 AB 3g LEDITB100 2 way Dimmer AB
Sheer G2 AB 3g LEDITB100 2 way Dimmer AB - Image 2
Sheer G2 AB 3g LEDITB100 2 way Dimmer AB - Image 3
SKU: 8G293XLEDITB100 Category:

Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Antique Brass

Insert Finish

Antique Brass

Description

Sheer G2 Antique Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer G2
Page-Sort-Order

016-012-003
Insert-Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Antique Brass
Uf-ItmLabelTechInsert

3XLEDITB
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer G2
Patents-And-Trade-Marks

Sheer G2 is a Registered Trade Mark No XXXXXX
Item-Long-Description

Sheer G2 Antique Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
PlateFinish

Sheer G2 Antique Brass
EAN13-Barcode

5017504097097

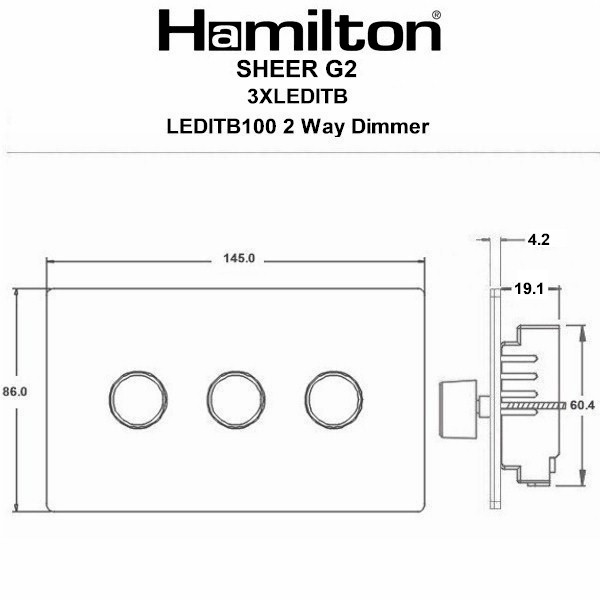

Dimensions(Nominal)

Double: Height = 85mm Width = 144mm Depth = 1.5mm + 2.7mm Gasket
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

435714835
Tech-Sheet-Page-Footer

8G293XLEDITB100 – Sheer G2 Antique Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
product-code

S SHG2 AB
family-code

S SHEER G2
last-inv

13/01/26
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533429280
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

016
HAM-SortOrder

012
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

3
MainInsertColour

Antique Brass
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Sheer G2 AB 3g LEDITB100 2 way Dimmer AB
Height

85mm
Width

144mm
Depth

1.5mm + 2.7mm Gasket
Plate-Finish

Antique Brass
Subheader2

Sheer G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
