Shr Flr AB 1g RJ45 CAT5E Unshielded BL

SKU: 89DJ45B Category:
Shr Flr AB 1g RJ45 CAT5E Unshielded BL
Shr Flr AB 1g RJ45 CAT5E Unshielded BL - Image 2
Shr Flr AB 1g RJ45 CAT5E Unshielded BL - Image 3
SKU: 89DJ45B Category:

Type

1 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Antique Brass

Insert Finish

Black

Description

Sheer Floor Antique Brass 1 gang RJ45 CAT 5E Outlet – Unshielded Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-033-001
Insert-Type

1 gang RJ45 CAT 5E Outlet – Unshielded
Insert-Colour

Black
Uf-ItmLabelTechInsert

J45
Uf-HAM-Plate-Range

Sheer Floor Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor Antique Brass 1 gang RJ45 CAT 5E Outlet – Unshielded Black
PlateFinish

Sheer Floor Box Antique Brass
EAN13-Barcode

5017504035235

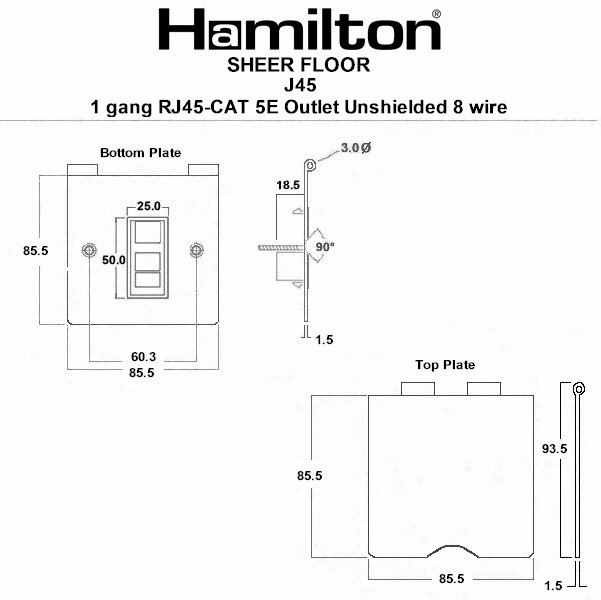

Dimensions(Nominal)

Single: Height = 93.5mm Width = 85.5mm Depth = 3.0mm (6.5mm Hinged Cover)
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

Dimension-Image

Luckins-TSI

398360106
Tech-Sheet-Page-Footer

89DJ45B – Sheer Floor Antique Brass 1 gang RJ45 CAT 5E Outlet – Unshielded Black
product-code

S SHR 89D
family-code

S SHR FLR
last-inv

29/08/25
unit-weight

230.00000
weight-units

GR
Uf-LuckinsEDP

4533329623
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

018
HAM-SortOrder

033
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

10/02/26
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Weight

230 GR
IP-Rating

IP2XD
description

Shr Flr AB 1g RJ45 CAT5E Unshielded BL
Height

93.5mm
Width

85.5mm
Depth

3.0mm (6.5mm Hinged Cover)
Plate-Finish

Antique Brass
Subheader2

Sheer Floor Sockets Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
