Shr Flr SS 1g 13A Unswt Skt WH

Shr Flr SS 1g 13A Unswt Skt WH
Shr Flr SS 1g 13A Unswt Skt WH - Image 2
Shr Flr SS 1g 13A Unswt Skt WH - Image 3
Shr Flr SS 1g 13A Unswt Skt WH - Image 4

Type

1 gang 13A Unswitched Socket

Plate Finish

Satin Steel

Insert Finish

White

Description

Sheer Floor Satin Steel 1 gang 13A Unswitched Socket White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-021-007
Insert-Type

1 gang 13A Unswitched Socket
Insert-Colour

White
Uf-ItmLabelTechInsert

US13
Uf-HAM-Plate-Range

Sheer Floor Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor Satin Steel 1 gang 13A Unswitched Socket White
PlateFinish

Sheer Floor Box Satin Steel
EAN13-Barcode

5028690060079

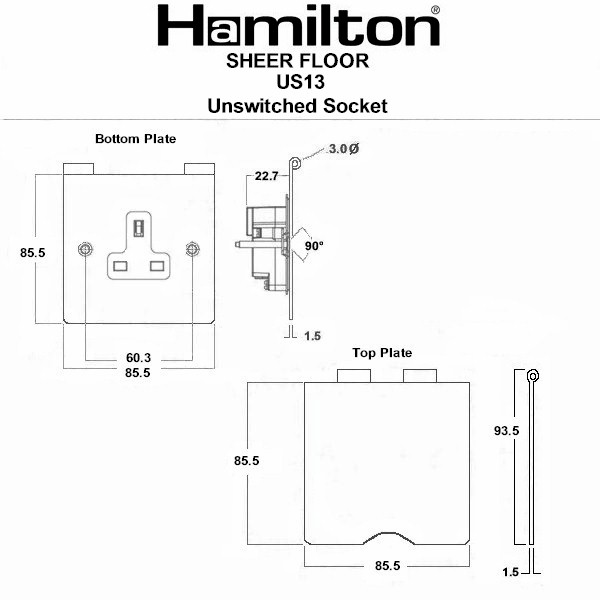

Dimensions(Nominal)

Single: Height = 93.5mm Width = 85.5mm Depth = 3.0mm (6.5mm Hinged Cover)
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3 x 4mm2
Earth-Terminal-Capacity-3

2 x 6mm2 Multi-strand
Earth-Terminal-Capacity-4

1 x 10mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385558604
Tech-Sheet-Page-Footer

84DUS13W – Sheer Floor Satin Steel 1 gang 13A Unswitched Socket White
product-code

S SHR 84D
family-code

S SHR FLR
last-inv

24/02/26
unit-weight

227.60000
weight-units

GR
Uf-LuckinsEDP

4533118229
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

018
HAM-SortOrder

021
InsertSortOrder

007
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

24/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Steel
Subheader2

Sheer Floor Sockets Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Weight

228 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Shr Flr SS 1g 13A Unswt Skt WH
Height

93.5mm
Width

85.5mm
Depth

3.0mm (6.5mm Hinged Cover)
