Shr Flr SN 1g 10/16A German Unswt Skt WH

Shr Flr SN 1g 10/16A German Unswt Skt WH
Shr Flr SN 1g 10/16A German Unswt Skt WH - Image 2

Type

1 gang 10/16A 220/250V AC German Unswitched Socket

Plate Finish

Satin Nickel

Insert Finish

White

Description

Sheer Floor Satin Nickel 1 gang 10/16A 220/250V AC German Unswitched Socket White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-107-
Insert-Type

1 gang 10/16A 220/250V AC German Unswitched Socket
Insert-Colour

White
Uf-ItmLabelTechInsert

6126
Uf-HAM-Plate-Range

Sheer Floor Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor Satin Nickel 1 gang 10/16A 220/250V AC German Unswitched Socket White
PlateFinish

Sheer Floor Box Satin Nickel
EAN13-Barcode

5017504034795

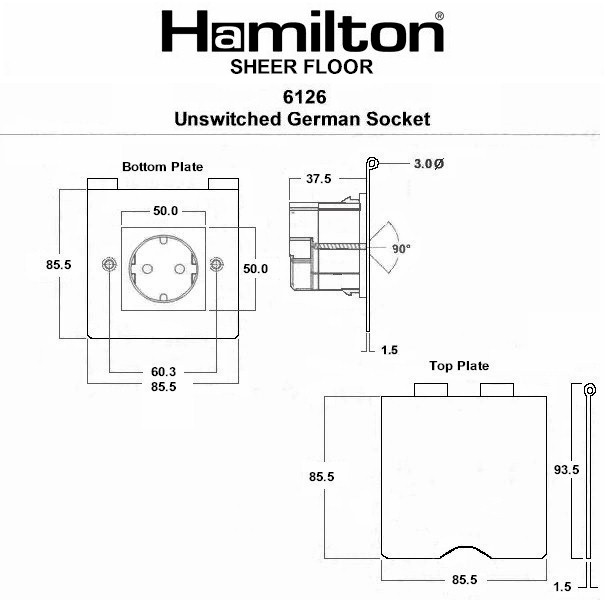

Dimensions(Nominal)

Single: Height = 93.5mm Width = 85.5mm Depth = 3.0mm (6.5mm Hinged Cover)
Current-Rating

10/16 Amp
Commodity-Code

85363010
Wiring-Image

Dimension-Image

Luckins-TSI

398355153
Tech-Sheet-Page-Footer

85D6126W – Sheer Floor Satin Nickel 1 gang 10/16A 220/250V AC German Unswitched Socket White
product-code

S SHR 85D
family-code

S SHR FLR
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533328967
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

18
HAM-SortOrder

107
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

German Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

47mm
Plate-Finish

Satin Nickel
Subheader2

Sheer Floor Sockets Power Sockets
Height

93.5mm
Width

85.5mm
Depth

3.0mm (6.5mm Hinged Cover)
Switched-Poles

None
Maximum-Load

16 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN ISO 5733 + IEC 60884-1
Additional-Notes

Shuttered:Yes
Voltage

220/250V AC
IP-Rating

IP2XD
